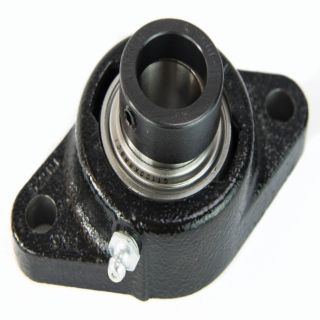

Fafnir SCJT11/4 SCJT Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJT11/4 is a standard flange mount ball bearing unit designed for various industrial applications. This durable unit features a one and one-eighth inch bore, a bolt center-to-center length of five and one-eighth inches, and an overall length of six and one-eighth inches. It is suitable for use in agriculture, food processing, fans, blowers, and conveyors.

• Normal duty standard series with two-bolt mounting
• Steel construction for high load capacity
• Operates in a temperature range of minus thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

This bearing unit provides robust support with set screw locking and is factory pre-lubricated for easy maintenance.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Type: Normal Duty Standard
• Bore Diameter: 1-1/8 in
• Overall Length/Diameter: 6-1/8 in
• Overall Depth: 1-1/2 in
• Overall Height: 1.504 in
• Locking Device: Set Screw
• Load Capacity: 6400 lb Dynamic / 3440 lb Static
• Maximum Speed: 3930 rpm
• Flange Mounting Type: 2-Bolt
• Temperature Rating: -30 to 275 deg F
• Finish: Uncoated
• Series: SCJT
