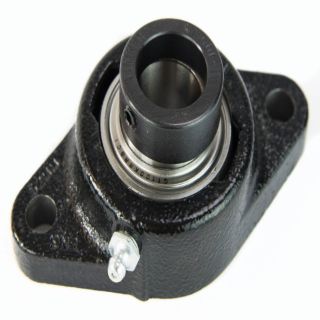

Fafnir SCJT11/2 SCJT1 1/2 TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJT1 1/2 TKN is a flange mount ball bearing unit designed for normal duty applications. It features a one and one-half inch bore and accommodates various industrial uses. With a robust construction, this unit is suitable for use in agriculture, food processing, fans, blowers, and conveyors.

• Normal duty design with a set screw locking device.
• Compatible with multiple industrial applications.
• Factory pre-lubricated for convenience.

Product Highlights

The SCJT1 1/2 TKN standard flange mount ball bearing unit offers easy installation and reliable performance for various applications.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Type: Normal Duty Standard
• Bore Diameter: 1-1/2 in
• Locking Device: Set Screw
• Overall Length/Diameter: 6-3/4 in
• Overall Depth: 1-39/64 in
• Overall Height: 1.598 in
• Bolt Center-to-Center Length: 5-21/32 in
• Maximum Speed: 3500 rpm
• Load Capacity: 8130 lb Dynamic, 4460 lb Static
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 2-Bolt
• Bearing Material: Steel
• Finish: Uncoated
