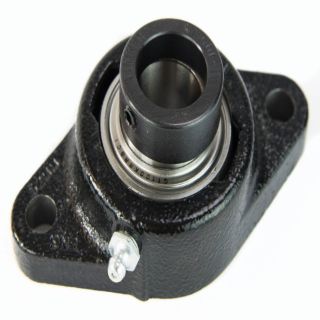

Fafnir SCJT1 TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJT1 TKN is a flange mount ball bearing unit designed for general industrial applications. It has a one-inch bore diameter and is engineered for effective mounting on straight shafts. This unit features a two-bolt flange design for secure installation and holds a reliable set screw locking device for stability.

• Dynamic load capacity of three thousand four hundred ninety pounds.
• Temperature rating ranges from negative thirty to two hundred seventy-five degrees Fahrenheit.
• Pre-lubricated and ready for use with an easy-to-access grease fitting for relubrication.

Product Highlights

Ideal for various applications including agriculture and food processing, this ball bearing unit ensures long-lasting performance. The design supports efficient operation with a maximum speed of five thousand four hundred forty RPM.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 1 inch
• Dynamic Load Capacity: 3490 lb
• Static Load Capacity: 1760 lb
• Maximum Speed: 5440 RPM
• Overall Depth: 1-11/64 inches
• Locking Device: Set Screw
• Overall Height: 1.122 inches
• Overall Length/Diameter: 0.78 inches
• Bolt Center-to-Center Length: 3-57/64 inches
• Flange Mounting Type: 2-Bolt
• Bearings Material: Steel
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Finish: Uncoated
• Series: SCJT
