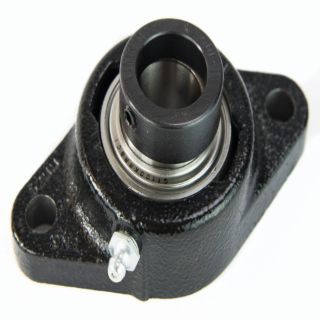

Fafnir SCJT1/2 SCJT 1/2 TKN Normal Duty Standard Flange Mount Ball Bearing

Product Description

Fafnir SCJT1/2 is a reliable ball bearing unit designed for normal duty applications. This unit features a half-inch diameter bore, making it suitable for various mounting needs. It offers a robust solution for industrial applications, including agriculture, food processing, fans, and blowers.

• Normal Duty Standard Flange Mount
• Set Screw Locking Device
• High Load Capacity of 2380 lb Dynamic

Product Highlights

The Fafnir SCJT1/2 unit is factory pre-lubricated and includes a grease fitting for easy relubrication, ensuring long-lasting performance.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SCJT
• Bore Diameter: 1/2 in
• Load Capacity: 2380 lb Dynamic / 1070 lb Static
• Maximum Speed: 7370 rpm
• Overall Depth: 1 in
• Overall Height: 1.003 in
• Overall Length/Diameter: 3-7/8 in
• Bolt Center-to-Center Length: 3 in
• Locking Device: Set Screw
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 2-Bolt
