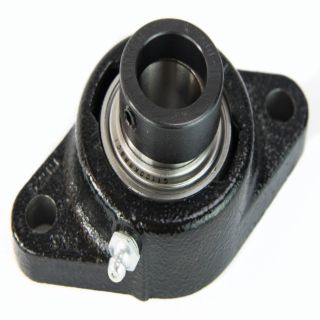

Fafnir SCJT 5/8 Ball Bearing Unit Normal Duty Standard SCJT

Product Description

The Fafnir brand SCJT 5/8 MPN SCJT5/8 is a standard flange mount ball bearing unit. It is made to be mounted on straight shafts and features a wide inner ring for added support. This unit is designed for use in various industrial applications including agriculture, food processing, fans, blowers, and conveyors.

• Normal duty standard design
• 2-bolt flange mount
• Factory pre-lubricated with a grease fitting for easy re-lubrication

Product Highlights

This ball bearing unit provides stability and support for shafts in multiple settings, enhancing efficiency in industrial machinery.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SCJT
• Bore Diameter: 5/8 inches
• Overall Length/Diameter: 3-7/8 inches
• Bolt Center-to-Center Length: 3 inches
• Overall Depth: 1 inch
• Overall Height: 1.003 inches
• Load Capacity: 2380 lb Dynamic/1070 lb Static
• Maximum Speed: 7370 rpm
• Temperature Rating: -30 to 275 degrees F
• Locking Device: Set Screw
• Bearing Material: Steel
• Flange Mounting Type: 2-Bolt
• Finish: Uncoated
