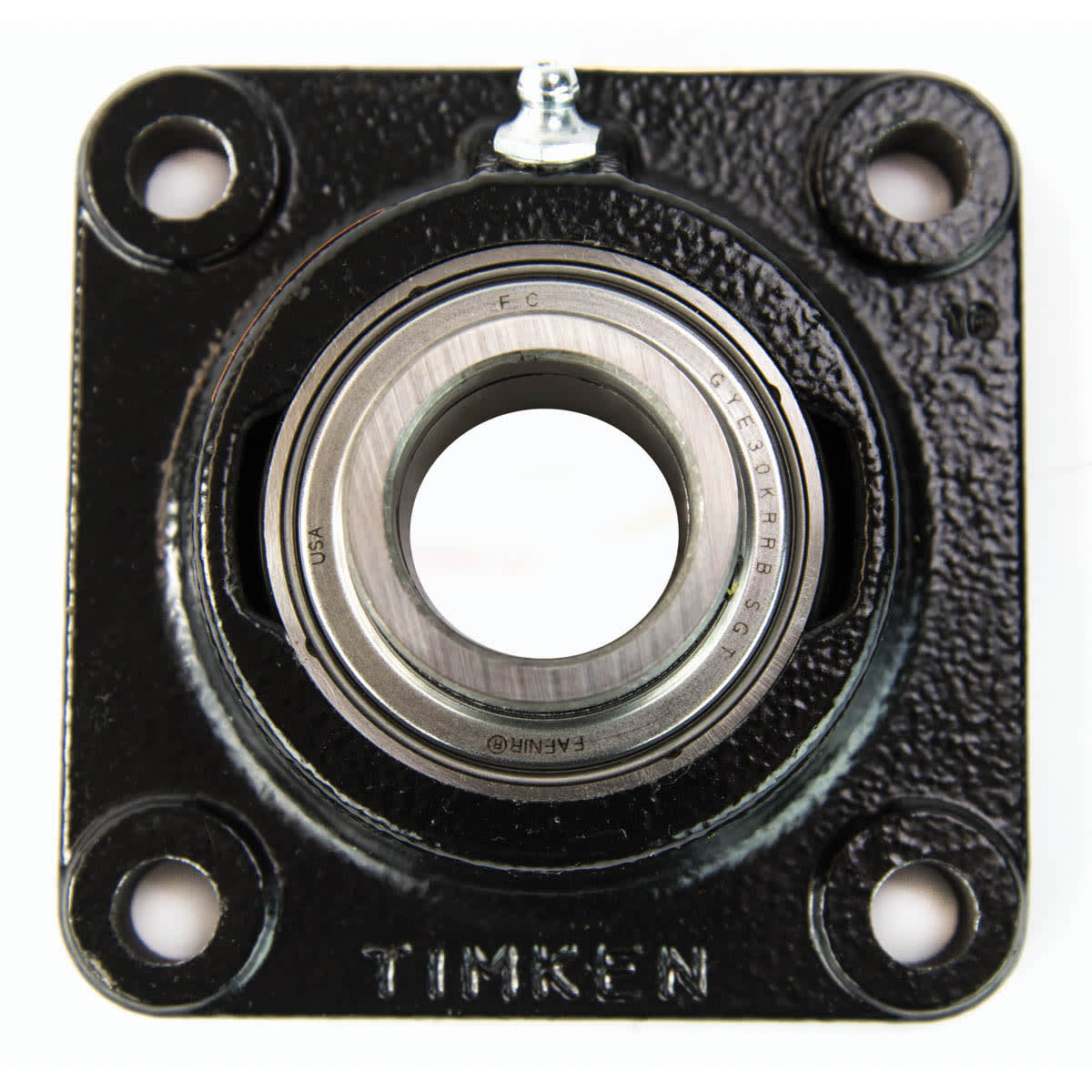

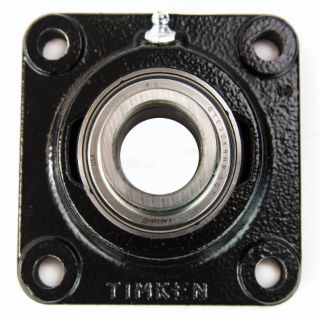

Fafnir SCJ17/16 Flange Mount Ball Bearing Unit

Product Description

Fafnir SCJ17/16 is a flange mount ball bearing unit designed for reliable operation in various industrial applications. This unit features a bore diameter of one and seven-sixteenths inches and a bolt center-to-center length of three and five-eighths inches.

• Durable steel bearing construction
• Set screw locking device for secure mounting
• Temperature range of negative thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

The Fafnir SCJ17/16 combines the bearing, housing, and locking mechanism into a single unit for ease of installation and operation.

Product Information

Standard Information

• Brand: Fafnir
• Type: Normal Duty Standard

Technical Specifications

• Bore Diameter: 1-7/16 inches
• Overall Length/Diameter: 4-5/8 inches
• Maximum Speed: 3930 RPM
• Load Capacity: 6400 lb Dynamic / 3440 lb Static
• Overall Height: 1.524 inches
• Overall Depth: 1-1/2 inches
• Flange Mounting Type: 4-Bolt
• Locking Device: Set Screw
