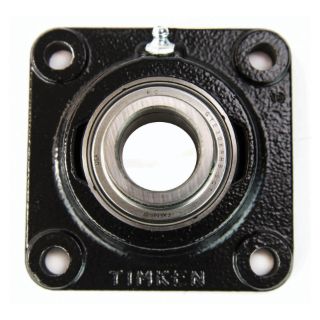

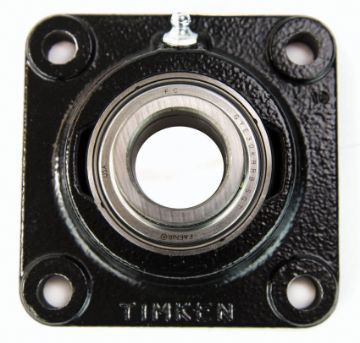

Fafnir SCJ13/8 SCJ Standard Series Round Bore Standard Duty Ball Bearing Housed Unit

Product Description

The Fafnir SCJ1 3/8 TKN is a ball bearing housed unit manufactured by Timken. This product integrates a bearing, housing, seal, and locking system for simple installation. It is designed for effective operation in a variety of applications like conveyors and general industrial equipment.

• Includes positive contact, land-riding seals for minimized maintenance.
• Factory pre-lubricated for easy operation.
• Exhibits high load capacity at 6400 pounds dynamic and 3440 pounds static.

Product Highlights

This unit is ideal for applications requiring compact shaft lengths while ensuring reliable performance and longevity.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SCJ Standard Series
• Bore Diameter: 1.375 in
• Load Capacity: 6400 lb Dynamic / 3440 lb Static
• Locking Device: Set Screw
• Overall Height: 1.361 in
• Bearing Material: Steel
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 4.25 in OAL / 2.83 in OD
• Bolt Center-to-Center Length: 3-1/4 in
