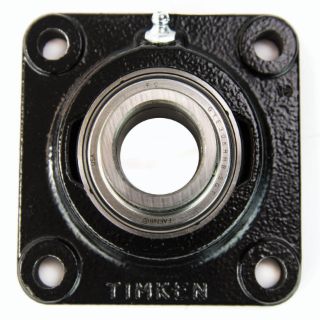

Fafnir SCJ13/4 SCJ Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJ13/4 is a flange mount ball bearing unit designed to provide reliable performance in various applications. This unit features a normal duty standard design with a one and three-quarter inch bore diameter.

• 4-bolt flange mount for secure installation
• Maximum speed of 3230 rpm
• Dynamic load capacity of 8160 lb

Product Highlights

The Fafnir SCJ13/4 is suitable for agriculture, food processing, fans, blowers, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 1-3/4 in
• Overall Length/Diameter: 5-3/8 in
• Bolt Center-to-Center Length: 4-1/8 in
• Overall Depth: 1-23/32 in
• Overall Height: 1.738 in
• Load Capacity: 8160 lb Dynamic / 4600 lb Static
• Maximum Speed: 3230 rpm
• Temperature Rating: -30 to 275 deg F
• Locking Device: Set Screw
• Bearing Material: Steel
• Finish: Uncoated
• Flange Mounting Type: 4-Bolt
