Fafnir SCJ13/16 SCJ1 3/16 TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

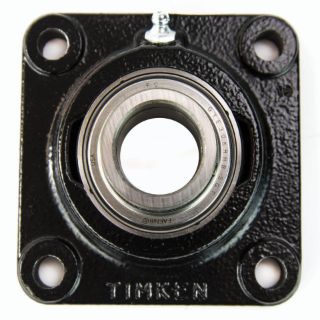

The Fafnir SCJ1 3/16 TKN is a flange mount ball bearing unit manufactured by Timken. It is designed for normal duty applications, featuring a unique combination of strength and versatility.

• Bore diameter of one and one-eighth inches for broad compatibility.
• Constructed with steel materials for durability and reliability.
• Incorporates set screw locking device for secure mounting.

Product Highlights

This product is ideal for a variety of industrial applications, including agriculture, food processing, and conveyor systems.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SCJ
• Bore Diameter: 1-1/8 in
• Load Capacity: 4850 lb Dynamic/2530 lb Static
• Maximum Speed: 4570 rpm
• Overall Depth: 1-11/32 in
• Overall Height: 1.361 in
• Overall Length/Diameter: 4-1/4 in
• Bolt Center-to-Center Length: 3-1/4 in
• Flange Mounting Type: 4-Bolt
• Temperature Rating: -30 to 275 deg F
• Finish: Uncoated
• Locking Device: Set Screw
• Bearing Material: Steel
