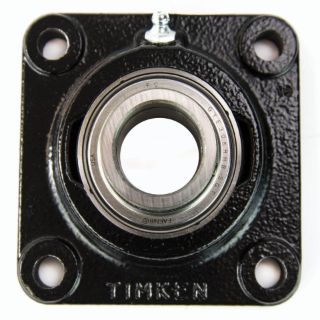

Fafnir SCJ115/16 SCJ Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJ115/16 is a flange mount ball bearing unit designed for reliable performance in various applications. It features a one and fifteen-sixteenths inch diameter bore, making it suitable for mounting on straight shafts. This model is ideal for use in sectors such as agriculture, food processing, and conveyor systems.

• Four-bolt flange mount for easy installation.
• Made with steel for enhanced durability.
• Operates efficiently at a maximum speed of three thousand rpm.

Product Highlights

Provides a robust solution for applications requiring precise shaft support.

Product Information

Standard Information

• Brand: Fafnir
• Type: Normal Duty Standard

Technical Specifications

• Bore Diameter: 1-15/16 in
• Load Capacity: 8740 lb Dynamic / 5210 lb Static
• Maximum Speed: 3000 rpm
• Overall Depth: 1-13/16 in
• Locking Device: Set Screw
• Overall Height: 1.831 in
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 5-5/8 in
• Bolt Center-to-Center Length: 4-3/8 in
