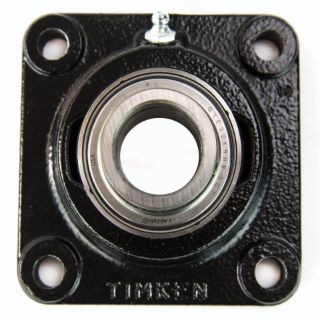

Fafnir SCJ11/4 SCJ1 1/4 TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJ11/4 is a flange mount ball bearing unit by Timken. This product features a one and one-eighth inch diameter bore and is designed for normal duty applications. It is suitable for a variety of industrial uses including agriculture, food processing, fans, and blowers.

• Four-bolt flange mount design for easy installation
• High load capacity with a dynamic rating of six thousand four hundred pounds
• Temperature range from minus thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

This ball bearing unit comes pre-lubricated and uses a set screw for locking. It is built for efficient operation at a maximum speed of three thousand nine hundred thirty RPM.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Type: Normal Duty Standard
• Series: SCJ
• Bore Diameter: 1-1/8 in
• Overall Length/Diameter: 4-5/8 in
• Overall Depth: 1-1/2 in
• Overall Height: 1.524 in
• Bolt Center-to-Center Length: 3-5/8 in
• Load Capacity: 6400 lb Dynamic / 3440 lb Static
• Maximum Speed: 3930 rpm
• Temperature Rating: -30 to 275 deg F
• Locking Device: Set Screw
• Bearing Material: Steel
• Flange Mounting Type: 4-Bolt
• Finish: Uncoated
