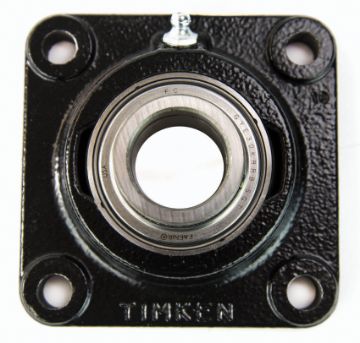

Fafnir SCJ1 TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJ1 TKN is a flange mount ball bearing unit designed for normal duty applications. This unit features a one-inch diameter bore and a robust four-bolt flange for secure mounting. The flange cartridge comes pre-assembled, allowing for quick installation. It is suitable for various industries such as agriculture, food processing, fans, blowers, and conveyors.

• 1 in diameter bore
• Designed for secure four-bolt flange mounting
• Suitable for a wide range of industrial applications

Product Highlights

This flange mount unit offers reliable support for shafts. Its robust design makes it ideal for environments requiring minimum shaft length. The unit is factory pre-lubricated and features a set screw locking device for added security.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SCJ
• Bore Diameter: 1 in
• Overall Length/Diameter: 3-3/4 in
• Bolt Center-to-Center Length: 2-3/4 in
• Overall Height: 1.189 in
• Overall Depth: 1-11/64 in
• Load Capacity: 3490 lb Dynamic / 1760 lb Static
• Maximum Speed: 5440 rpm
• Temperature Rating: -30 to 275 deg F
• Locking Device: Set Screw
• Bearing Material: Steel
• Flange Mounting Type: 4-Bolt
• Finish: Uncoated
