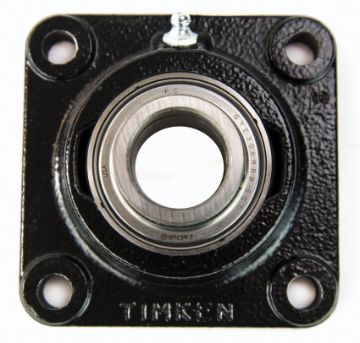

Fafnir SCJ1 1/4S TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJ1 1/4S TKN is a normal duty standard flange mount ball bearing unit by Timken. Designed for flexibility and durability, this unit has a bore diameter of one and one-eighth inches. A key feature is its four-bolt flange that ensures secure mounting. This bearing unit supports a dynamic load of four thousand eight hundred fifty pounds and a static load of two thousand five hundred thirty pounds.

• Built with GYA-RRB bearings that ensure proper sealing.
• Temperature range is from minus thirty to two hundred seventy-five degrees Fahrenheit.
• Pre-lubricated for extended operation life.

Product Highlights

The SCJ1 1/4S is suitable for various applications, including agriculture and food processing. Its robust design and high load capacity make it ideal for fans, blowers, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 1-1/8 in
• Load Capacity: 4850 lb Dynamic / 2530 lb Static
• Maximum Speed: 4570 rpm
• Overall Depth: 1-11/32 in
• Locking Device: Set Screw
• Overall Height: 1.361 in
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 4-1/4 in
• Bolt Center-to-Center Length: 3-1/4 in
