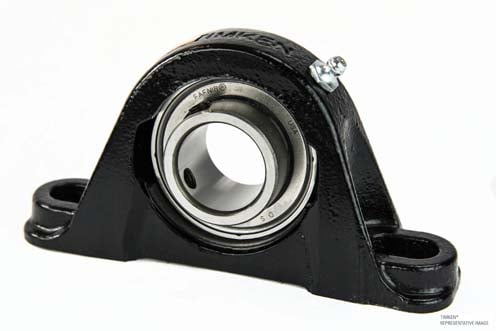

Fafnir SAS1 SAS Series Cast Iron 2-Bolt Ball Bearing Pillow Block

Product Description

The Fafnir SAS1 is a robust and efficient SAS Series cast iron 2-bolt ball bearing pillow block. This unit is built for dependable performance and versatility. It can be mounted in various positions to suit different installation needs.

• 1 inch shaft diameter
• Relubricatable design with grease fitting
• Suitable for normal-duty applications

Product Highlights

This pillow block is prelubricated and features a positive contact seal for strong protection against contaminants. Its construction provides durability for various applications, including agriculture, conveyors, and fans.

Product Information

Standard Information

• Brand: Fafnir
• MPN: SAS1

Technical Specifications

• Base Length: 5 1/2 inches
• Seal Type: Contact Seals
• Mounted Unit Duty: Normal-Duty
• Insert Type: Steel Insert
• Bolt Hole Length: 13/16 inches
• Center Line to Base Dimension [Min]: 1 7/16 inches
• Pillow Block Type: Thru-Bolt
• Locking Device: Setscrew Locking Collar
• Base Width: 1 13/32 inches
• Base Height: 19/32 inches
• Inch/Metric: Inch
• Bolt Hole Spacing: 4 1/8 inches
• Outer Ring Size: 205
• Bearing Insert: GYA100RRB
• Bolt Holes: 2
• End Type: Open End
• Housing Material: Cast Iron
• Length Through Bore: 1.109 inches
• Bolt Hole Width: 7/16 inches
• Shaft Dia.: 1 inch
• Dynamic Load Rating: 3,450.00 lbf
• Bearing Type: Ball Bearing
• Housing Construction: 1 Piece
• Lubrication: Relubricatable
• Bearing Design: Non-Expansion
• Housing Height: 2 13/16 inches
• Weight: 1.622 lb
• EAN or UPC: 87796057494
