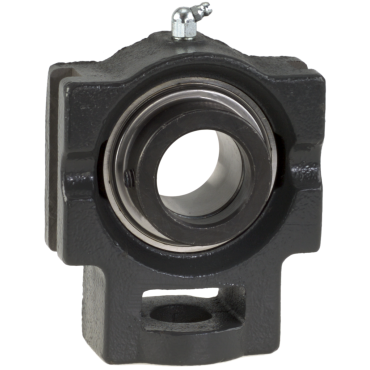

Fafnir RTU17/16NT Ball Bearing Take-Up Unit

Product Description

The Fafnir RTU17/16NT is a ball bearing take-up unit designed for efficient shaft adjustment and belt-tightening applications commonly found in conveyor systems. This unit utilizes self-aligning B type wide inner ring ball bearings with self-locking collars. The RTU17 model features a G-KRRB (R-Seal) type wide inner ring bearing, which ensures a compact design while providing robust support for adjustable shafts and conveyor take-up pulleys. Its factory-lubricated design includes a grease fitting for relubrication as needed.

• 1 7/16 inch shaft diameter
• Relubricatable for extended service life
• Durable nickel-plated housing material

Product Highlights

This take-up unit is ideal for conveyor applications requiring shaft adjustments and includes features that enhance its efficiency and usability.

Product Information

Standard Information

• Type: Ball Bearing
• Availability: In Stock

Technical Specifications

• Overall Height: 4.125 inches
• Locking Device: Setscrew Locking Collar
• Housing Material: Nickel Plated
• Housing Width: 1 3/4 inches
• Shank Height: 2 1/2 inches
• Overall Width: 2 5/32 inches
• Take-Up Types: Wide Slot
• Lubrication: Relubricatable
• Between Frame Width: 3 1/2 inches
• Slot Width: 0.53125 inches
• Slot Length: 2 3/4 inches
• Seal Type: Contact Seals
• Shaft Diameter: 1.4375 inches
• Bearing Design: Non-Expansion
• Weight: 4.09 pounds
• EAN or UPC: 87796156661
