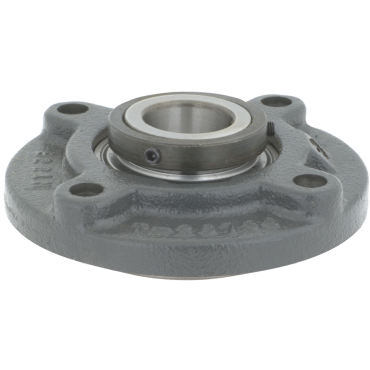

Fafnir RFC17/16 | 4-Bolt Piloted Flange Unit - 1.4375 Shaft

Product Description

The Fafnir RFC17/16 offers reliable performance in demanding applications. This 4-bolt piloted flange unit features a shaft diameter of one point four three seven five inches. Designed for heavy loads, it incorporates contact seals and an eccentric locking collar.

• Suitable for agriculture, material handling, and industrial applications
• Provides easy re-lubrication access
• Constructed with durable cast iron housing

Product Highlights

The flange unit is designed for normal-duty applications and supports efficient operation in various environments.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RFC17/16

Technical Specifications

• Flange Type: 4-Bolt Flange, Piloted Flange
• Shaft Diameter: 1.4375 inches
• Housing Material: Cast Iron
• Seal Type: Contact Seals
• Lubrication: Relubricatable
• Overall Width: 1.75 inches
• Housing Height: 5.25 inches
• Housing Length: 5.25 inches
• Locking Device: Eccentric Locking Collar
• Mounting Type: Normal-Duty
• Pilot Diameter: 3.625 inches
• Bolt Circle Diameter: 4 inches
• Weight: 4.41 lbs
