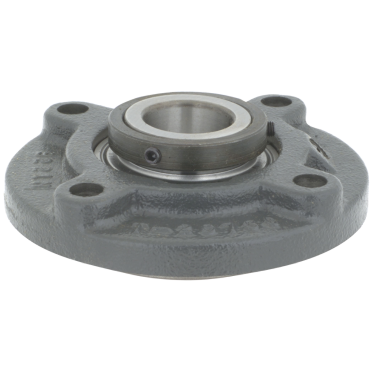

Fafnir RFC11/4 RFC Industrial Series 4-Bolt Piloted Flange Unit

Product Description

The Fafnir RFC11/4 is part of the RFC Industrial Series and is a 4-bolt piloted flange unit. Designed for secure mounting and reliable performance, this unit is suitable for various heavy-duty applications. It provides optimal support for heavy loads in material handling, conveyors, and agricultural equipment.

• Features a 1.25-inch shaft and eccentric locking collar.
• Constructed from durable cast iron for longevity.
• Pre-lubricated with grease fitting for easy maintenance.

Product Highlights

This flange unit is ideal for industries needing dependable load support and efficiency.

Product Information

Standard Information

• Brand: Fafnir
• Unit Type: 4-Bolt Piloted Flange

Technical Specifications

• Housing Material: Cast Iron
• Bolt Hole Spacing: 2.828427 inches
• Seal Type: Contact Seals
• Lubrication: Relubricatable
• Flange Type: 4-Bolt Flange, Piloted Flange
• Housing Width: 1.3438 inches
• Housing Length: 5.25 inches
• Locking Device: Eccentric Locking Collar
• Pilot Diameter: 3.625 inches
• Bearing Insert: GC1104KRRB
• Bolt Circle Diameter: 4 inches
• Shaft Diameter: 1.25 inches
• End Type: Open End
• Bearing Type: Ball Bearing
• Overall Width: 1.75 inches
• Weight: 4.22 lbs
• EAN or UPC: 87796058552
