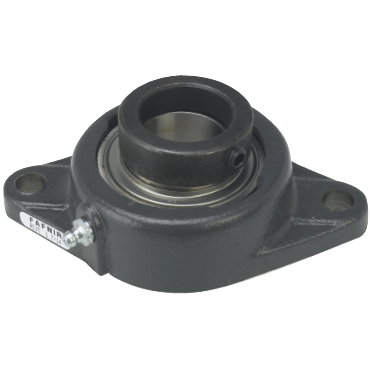

Fafnir RCJT7/8 RCJT Industrial Series 2-Bolt Flange Unit

Product Description

The Fafnir RCJT7/8 is a reliable industrial flange unit designed for various applications. It features a shaft diameter of zero point eight seven five inches and utilizes contact seals for protection against contamination. This flange unit is equipped with an eccentric locking collar for secure mounting. These units are suitable for environments where mounting space is limited due to their two-bolt design.

• Compact two-bolt design
• Equipped with relubricatable grease fitting
• Factory pre-lubricated for immediate use

Product Highlights

The Fafnir RCJT7/8 is ideal for industrial settings requiring a durable and efficient flange unit.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: 100733784

Technical Specifications

• Seal Type: Contact Seals
• Shaft Diameter: 0.875 inches
• Flange Type: 2-Bolt Flange
• Housing Material: Cast Iron
• Locking Device: Eccentric Locking Collar
• Dynamic Load Rating: 3450 lbf
• Weight: 1.56 lb
• Overall Width: 1.839 inches
• Housing Width: 1.1 inches
• Housing Height: 2.75 inches
• Housing Length: 4.875 inches
• Bearing Type: Ball Bearing
• Lubrication: Relubricatable
