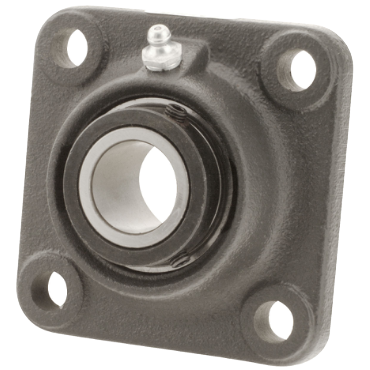

Fafnir RCJC11/2 RCJC Industrial Series 4-Bolt Flange Unit

Product Description

The Fafnir RCJC11/2 is an industrial-grade 4-bolt flange unit designed for reliable performance. This unit features a one and a half-inch shaft and a concentric collar for secure locking.

• 4-bolt hole spacing for easy installation
• Equipped with contact seals to protect against contaminants
• Regreasable design for maintenance flexibility

Product Highlights

The Fafnir RCJC11/2 is suitable for various applications including agriculture, fans and blowers, food processing, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RCJC11/2

Technical Specifications

• Housing Construction: 1 Piece
• Seal Type: Contact Seals
• Bearing Design: Non-Expansion
• Bolt Hole Spacing: 4 in
• Bolt Hole Size: 0.5156 in
• Housing Length: 5 1/8 in
• End Type: Open End
• Housing No.: T-16666A
• Flange Thickness: 11/16 in
• Locking Device: Eccentric Locking Collar
• Housing Height: 5 1/8 in
• Duty: Normal-Duty
• Bolt Circle Dia.: 5 21/32 in
• Housing Width: 1.5938 in
• Bearing Type: Ball Bearing
• Mounted Unit Duty: Normal-Duty
• Flange Type: 4-Bolt Flange
• Style: 4-Bolt Flange
• Bearing Insert: GC1108KRRB
• Inch/Metric: Inch
• Length Through Bore: 1.7344 in
• Overall Width: 2.0156 in
• Housing Material: Cast Iron
• Shaft Dia.: 1.5 in
• Lubrication: Relubricatable
• Weight: 4.486 LB
• EAN or UPC: 87796059627
