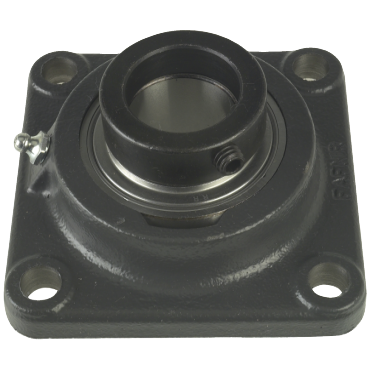

Fafnir RCJ211/16 RCJ Industrial Series 4-Bolt Flange Unit

Product Description

The Fafnir RCJ211/16 is a reliable 4-bolt flange unit designed for various applications. This unit features a two point six eight seven five inches shaft diameter and is equipped with contact seals and an eccentric locking collar for secure mounting. The flange is designed to be easily assembled and mounted using bolts.

• Self-aligning bearing for easy installation
• Factory prelubricated with a grease fitting for further lubrication
• Constructed from durable cast iron for long-lasting use

Product Highlights

This product is an ideal choice for agriculture, food processing, and conveyor systems due to its robust features and easy maintenance.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RCJ211/16

Technical Specifications

• Overall Width: 3.557 inches
• Bearing Insert: G1211KRRB
• Length Through Bore: 2.6875 inches
• Bearing Type: Ball Bearing
• Flange Thickness: 0.75 inches
• Lubrication: Relubricatable
• Inch/Metric: Inch
• Flange Type: 4-Bolt Flange
• Housing Material: Cast Iron
• Shaft Diameter: 2.6875 inches
• Housing Length: 7 3/8 inches
• Housing Width: 2 1/2 inches
• Dynamic Load Rating: 15600 lbf
• Mounted Unit Duty: Normal-Duty
• Bolt Hole Spacing: 5 7/8 inches
• Style: 4-Bolt Flange
• Bearing Design: Non-Expansion
• Housing No.: T-22530
• Housing Construction: 1 Piece
• Outer Ring Size: 214
• Housing Height: 7 3/8 inches
• End Type: Open End
• Seal Type: Contact Seals
• Duty: Normal-Duty
• Locking Device: Eccentric Locking Collar
• Bolt Hole Size: 0.641 inches
• Weight: 15.6 pounds
• EAN or UPC: 87796061798
