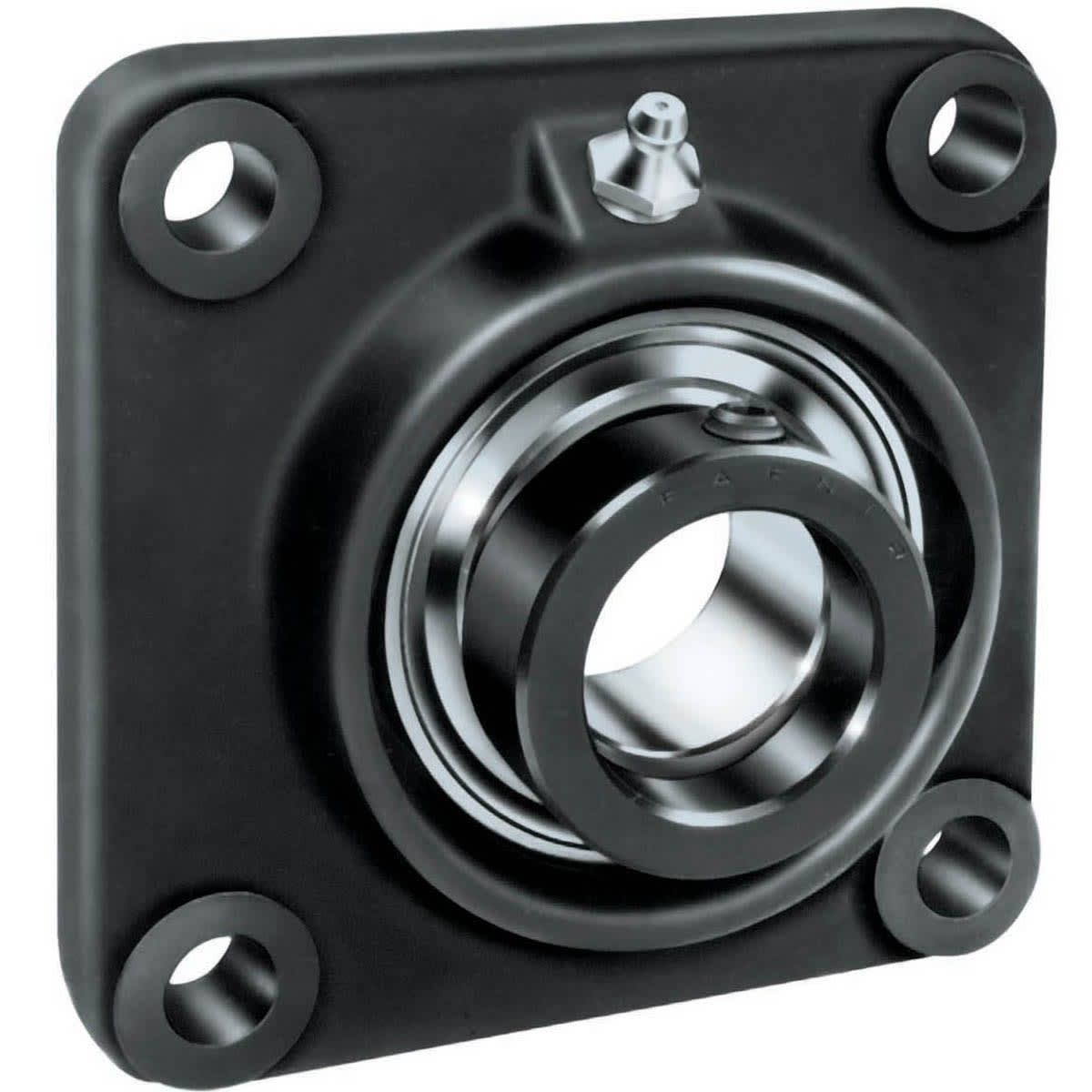

Fafnir RCJ13/16 Timken Flange Mount Ball Bearing Unit

Product Description

The Fafnir RCJ13/16 by Timken is a flange mount ball bearing unit designed for industrial applications. This unit features a bore diameter of one point one three inches and a four-bolt flange for secure mounting.

• Wide-inner-ring ball bearing for extra shaft support
• Eccentric locking device for easy adjustments
• Factory pre-lubricated for hassle-free installation

Product Highlights

The RCJ13/16 flange mount ball bearing unit is suited for various applications including agriculture, food processing, fans, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 1-3/16 in
• Load Capacity: 4850 lb Dynamic / 2530 lb Static
• Maximum Speed: 4570 rpm
• Overall Depth: 1.99 in
• Locking Device: Eccentric
• Overall Height: 1.99 in
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 4-1/4 in
• Bolt Center-to-Center Length: 3-1/4 in
