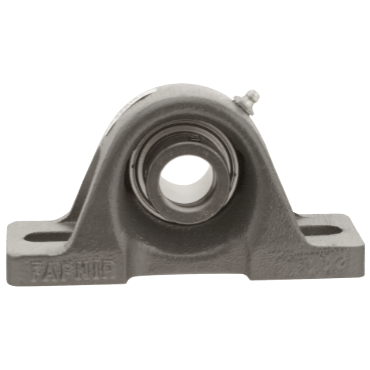

Fafnir RAKH27/16 RAKH Series Cast Iron 2-Bolt Ball Bearing Pillow Block

Product Description

The Fafnir RAKH27/16 is a cast iron 2-bolt ball bearing pillow block designed for secure shaft support. This product allows for easy installation and maintenance in various applications. It is ideal for use in agriculture, fans and blowers, food processing, and conveyors.

• Fixed shaft location with interchangeability options.
• Maximum operating temperature of 250 °F (121 °C).
• Equipped with self-locking collars for added security.

Product Highlights

The Fafnir RAKH pillow block provides a reliable solution for mounting shafts in different settings. Its effective design allows for use in specific environments where flexibility and efficiency are needed.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RAKH27/16

Technical Specifications

• Housing Material: Cast Iron
• Shaft Diameter: 2.4375 inches
• Base Height: 1 1/16 inches
• Base Width: 3 1/4 inches
• Base Length: 11 1/4 inches
• Temperature Range [Max]: 250 °F
• Bolt Holes: 2
• Locking Device: Eccentric Locking Collar
