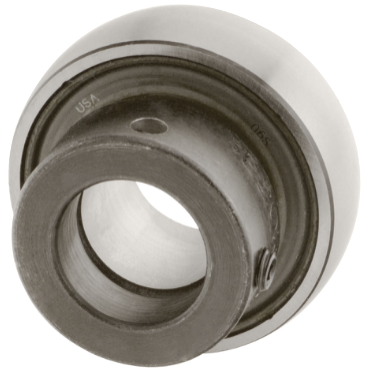

Fafnir RAE30RRB RA-RRB Standard Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir RAE30RRB is a wide inner ring ball bearing designed for durability and performance. Featuring a spherical outer diameter, this bearing allows unrestricted initial alignment when installed in compatible housings. The self-locking collar ensures secure placement and reliability.

• Dimensions: 30 mm inner diameter and 62 mm outer diameter.
• Double sealed design protects against contaminants.
• Non-relubricatable feature for maintenance-free operation.

Product Highlights

Suitable for standard-duty applications, the RAE30RRB is ideal for use where alignment and sealing are critical. The factory prelubricated design means it is ready for immediate use right out of the packaging.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: RAE30RRB

Technical Specifications

• Inner Diameter: 30 mm
• Outer Diameter: 62 mm
• Outer Ring Width: 18 mm
• Dynamic Load Rating: 4800 lbf
• Static Load Rating: 2280 lbf
• Material: Steel
• Seal Type: Double Sealed
• Weight: 0.36 LB
