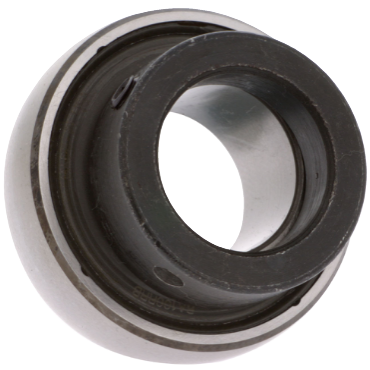

Fafnir RA112RRB RA-RRB Standard Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir RA112RRB is a wide inner ring ball bearing designed for high performance and durability. This bearing features an eccentric locking collar for secure mounting and is ideal for various industrial applications. Its double-sealed design protects against dust and moisture, enhancing its longevity in tough operating environments.

• Extended inner ring with self-locking collar
• Double sealed for better protection
• Dynamic load rating of 8150 lbf

Product Highlights

Optimized for demanding conditions, the RA-RRB series bearings are prelubricated from the factory. Their cylindrical outer diameter allows for a secure fit within spherical housings.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: RA112RRB

Technical Specifications

• Bore Type: Round Bore
• Outer Ring Width: 22 mm
• Material: Steel
• Dynamic Load Rating: 8150 lbf
• Locking Device: Eccentric Locking Collar
• Overall Width: 1 23/32 in
• Length Through Bore: 1.188 in
• Outer Ring Size: 209
• Static Load Rating [Max]: 4000 lbf
• Seal Type: Contact Seals
• Static Capacity: 4000 lbf
• I.D.: 1.750 in
• Bearing Type: Ball Bearing
• Bearing Design: Non-Expansion
• Inch/Metric: Inch Bore
• Enclosure: Double Sealed
• Rolling Element: Ball Bearing
• O.D.: 85 mm
• Duty: Standard-Duty
• Lubrication: Non-Relubricatable
• Weight: 1.499 LB
• EAN or UPC: 87796053892
