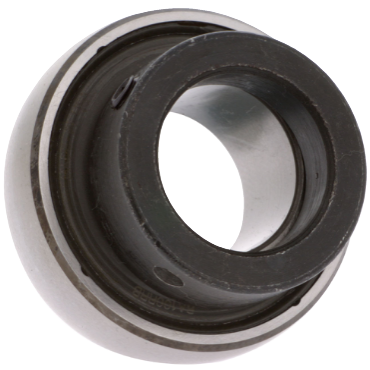

Fafnir RA111RRB RA-RRB Standard Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir RA111RRB is part of the RA-RRB Standard Series Wide Inner Ring Ball Bearings. It features an extended inner ring design with a self-locking collar for secure applications. The R-seal provides effective contamination protection and retains lubricant in challenging environments. These bearings are factory pre-lubricated for convenience.

• Inch Bore
• Non-relubricatable design
• Double sealed for enhanced protection

Product Highlights

This ball bearing series is ideal for high-load applications. It is engineered for reliability under various operating conditions.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RA111RRB

Technical Specifications

• Lubrication: Non-Relubricatable
• Bearing Type: Ball Bearing
• Outer Ring Size: 209
• Overall Width: 1 23/32 inches
• Enclosure: Double Sealed
• Inch/Metric: Inch Bore
• Outer Ring Width: 22 mm
• O.D.: 85 mm
• Seal Type: Contact Seals
• I.D.: 1.6875 inches
• Bore Type: Round Bore
• Static Load Rating [Max]: 4000 lbf
• Material: Steel
• Length Through Bore: 1.188 inches
• Duty: Standard-Duty
• Rolling Element: Ball Bearing
• Locking Device: Eccentric Locking Collar
• Dynamic Load Rating: 8150 lbf
• Weight: 1.61 LB
• EAN or UPC: 87796053830
