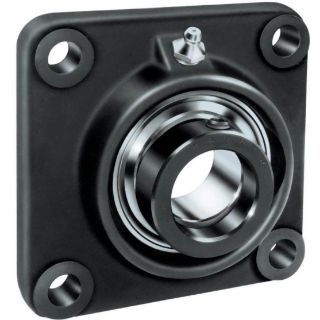

Fafnir LCJ115/16 LCJ Flange Mount Ball Bearing Unit 1-15/16 In Bore

Product Description

The Fafnir brand offers the LCJ115/16 Flange Mount Ball Bearing Unit. This unit is designed for industrial applications with a bore diameter of one and fifteen-sixteenths inches.

• Direct mounting on straight shafts
• Includes a four-bolt flange mount for secure attachment
• Features an eccentric locking device for proper alignment

Product Highlights

This bearing unit is suitable for agriculture, food processing, and conveyor systems.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Bore Diameter: 1-15/16 inches
• Overall Length/Diameter: 5-5/8 inches
• Bolt Center-to-Center Length: 4-3/8 inches
• Overall Depth: 2.615 inches
• Overall Height: 2.615 inches
• Load Capacity: 8740 lb Dynamic / 5210 lb Static
• Maximum Speed: 5000 rpm
• Temperature Rating: -30 to 275 degrees F
• Locking Device: Eccentric
• Bearing Material: Steel
• Finish: Uncoated
• Type: Industrial Normal Duty
• Series: LCJ
