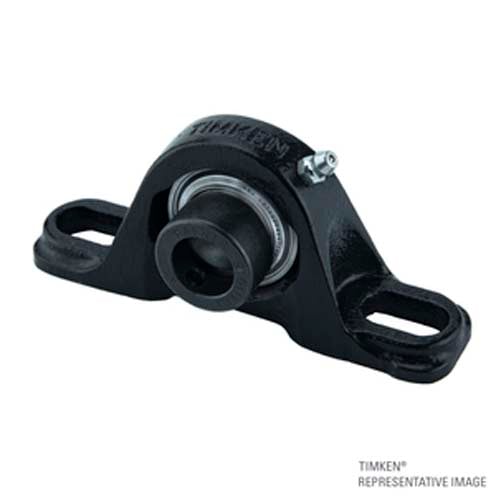

Fafnir LAS1 LAS Series Cast Iron 2-Bolt Ball Bearing Pillow Block

Product Description

The Fafnir LAS1 is a cast iron 2-bolt ball bearing pillow block. This design provides reliable support and load capacity in various applications. It features a higher base-to-center height, offering interchangeability with competitive designs.

• Compatible with agriculture, fans, blowers, food processing, and conveyors.
• Constructed with labyrinth seals for protection against contaminants.
• Equipped with an eccentric locking collar for secure mounting.

Product Highlights

The Fafnir LAS1 is suitable for normal-duty applications and operates effectively in a temperature range up to three hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Fafnir
• MPN: LAS1

Technical Specifications

• Pillow Block Type: Thru-Bolt
• Base Width: 1.4063 inches
• Bolt Holes: 2
• Housing Construction: 1 Piece
• Collar No.: S1100K
• Bearing Type: Ball Bearing
• Bolt Hole Spacing: 4 1/8 inches
• Lubrication: Relubricatable
• Housing Material: Cast Iron
• Base Length: 5 1/2 inches
• Bearing Insert: G1100KLLB
• Bearing Design: Non-Expansion
• Weight: 2.182 pounds
