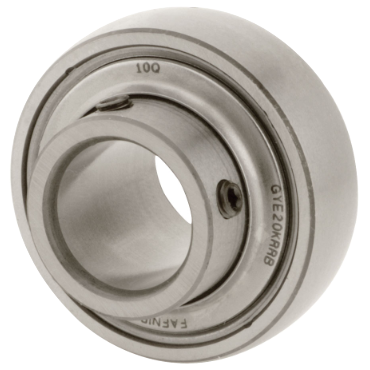

Fafnir GYE60KRRB GY-KRRB Industrial Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir GYE60KRRB is a GY-KRRB Industrial Series Wide Inner Ring Ball Bearing. This bearing is designed for industrial applications that require strong performance, such as HVAC systems. It features a wide inner ring and is built to handle heavy loads effectively.

• Dimensions: 60 mm inner diameter, 110 mm outer diameter, 27 mm outer ring width
• Double sealed with contact seals for enhanced protection
• Setscrew locking feature suitable for reversing load applications

Product Highlights

This bearing ensures reliable operation in a variety of conditions and is suitable for demanding environments.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: 101019912

Technical Specifications

• Outer Ring Width: 27 mm
• Duty: Standard-Duty
• O.D.: 110 mm
• Bearing Type: Ball Bearing
• Dynamic Load Rating: 13200 lbf
• Lubrication: Relubricatable
• I.D.: 60 mm
• Enclosure: Double Sealed
• Bore Type: Round Bore
• Inch/Metric: Metric Bore
• Seal Type: Contact Seals
• Static Capacity: 6950 lbf
• Overall Width: 2.562 in
• Outer Ring Size: 212
• Length Through Bore: 2.562 in
• Locking Device: Setscrew Locking Collar
• Material: Steel
• Rolling Element: Ball Bearing
• Static Load Rating [Max]: 6950 lbf
• Weight: 3.656 lb
• EAN or UPC: 87796170025
