Fafnir GY1108KRRB SGT | SGT Series Bearing Insert | 1 1/2 ID x 80 mm OD

Product Description

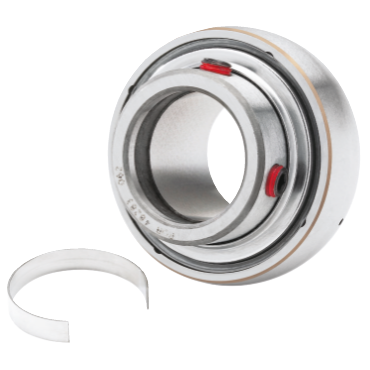

The Fafnir GY1108KRRBSGT is a durable SGT Series bearing insert designed for varied applications. This component features a one and a half inch inner diameter and an outer diameter of eighty millimeters. It has a width of twenty-one millimeters in the outer ring and uses a setscrew locking collar for secure mounting.

• Outer diameter of eighty millimeters.
• Features a hardened stainless steel band.
• Ideal for industrial applications such as manufacturing machinery.

Product Highlights

This bearing insert is suitable for a range of applications including rubber and plastic manufacturing, industrial machinery, and agriculture equipment.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: 101019214

Technical Specifications

• Material: Steel
• Outer Ring Size: 208
• Static Load Rating [Max]: 4,400.00 lbf
• I.D.: 1.500 in
• Bore Type: Round Bore
• Enclosure: Double Sealed
• O.D.: 80 mm
• Bearing Type: Ball Bearing
• Dynamic Load Rating: 8,150.00 lbf
• Length Through Bore: 1.938 in
• Locking Device: Setscrew Locking Collar
• Rolling Element: Ball Bearing
• Inch/Metric: Inch Bore
• Outer Ring Width: 21 mm
• Duty: Standard-Duty
• Weight: 1.551 LB
• EAN or UPC: 87796265011
