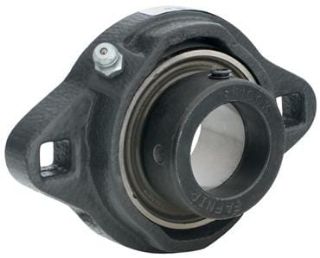

Fafnir GVFTD1 TKN Flange Mount Ball Bearing Unit | 1 In Bore | 3 In Bolt Center-to-Center | 2-Bolt

Product Description

Fafnir ball bearing housed units are robust solutions for various applications. The GVFTD1 model features a one-inch bore and a durable construction. It is designed for normal duty and can be relubricated to extend its life.

• Flange mount design.
• Wide-inner-ring ball bearings for added support.
• Temperature range of -30 to 275 degrees F.

Product Highlights

This unit combines the bearing, housing, seal, and locking system into one device for easy installation and effective operation.

Product Information

Standard Information

• Brand: Fafnir
• MPN: GVFTD1

Technical Specifications

• Bore Diameter: 1 in
• Load Capacity: 3.49 lb Dynamic / 1.76 lb Static
• Maximum Speed: 5440 rpm
• Overall Depth: 1-11/32 in
• Locking Device: Eccentric
• Overall Height: 1.344 in
• Bearing Material: Steel
• Flange Mounting Type: 2-Bolt
• Overall Length/Diameter: 3-3/4 in
• Bolt Center-to-Center Length: 3 in
