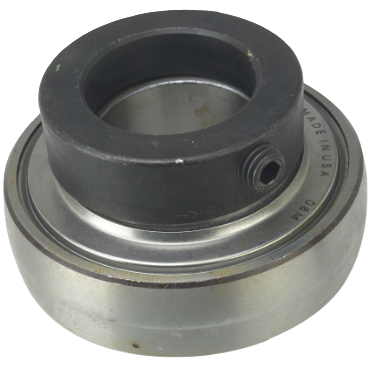

Fafnir GN207KRRB GN-KRRB Heavy Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir GN-KRRB Heavy Series Wide Inner Ring Ball Bearing, MPN GN207KRRB, is designed for handling continuous and heavy loads. These bearings are effective in harsh conditions where dirt and corrosion are prevalent. They are particularly well-suited for operational use at slow to moderate speeds.

• Dynamic Load Rating of 20400 lbf
• Double sealed with Eccentric Locking Collar
• Compatible with relubrication for extended use

Product Highlights

Durable construction for heavy-duty applications.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: 100733945

Technical Specifications

• I.D.: 2.4375 inches
• O.D.: 130 mm
• Outer Ring Width: 33 mm
• Overall Width: 3 1/8 inches
• Bearing Type: Ball Bearing
• Seal Type: Contact Seals
• Locking Device: Eccentric Locking Collar
• Material: Steel
• Enclosure: Double Sealed
• Lubrication: Relubricatable
• Static Capacity: 10800 lbf
• Dynamic Load Rating: 20400 lbf
• Length Through Bore: 2.4375 inches
