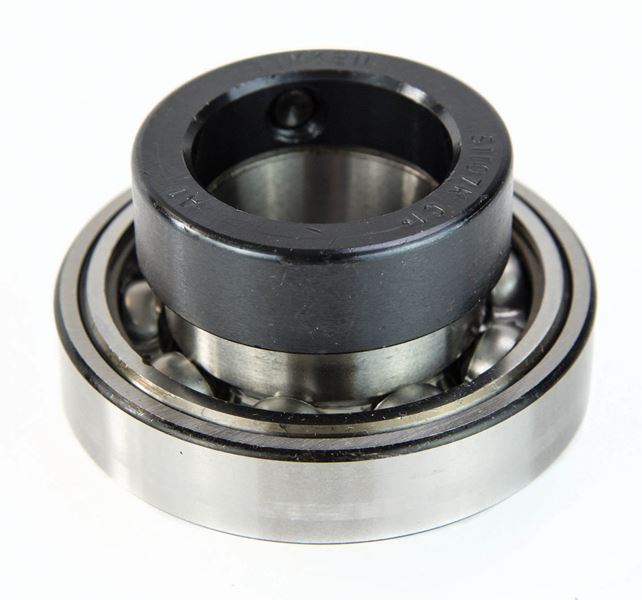

Fafnir GN112KRRB GN-KRRB Heavy Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir GN112KRRB is a wide inner ring ball bearing designed for heavy-duty applications. This bearing features a unique design to handle heavy or shock loads efficiently. It is equipped with a contact-type diaphragm seal, ensuring that lubricant is retained while preventing the entry of contaminants.

• 1 3/4 inch ID and 100 mm OD dimensions
• Double sealed for effective protection against dirt
• Regreasable construction for extended service life

Product Highlights

This bearing is ideal for slow to moderate speeds, operating efficiently under harsh conditions of dirt and corrosion.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: 100733942

Technical Specifications

• Bearing Type: Ball Bearing
• Static Capacity: 6700 lbf
• O.D.: 100 mm
• Outer Ring Width: 27 mm
• Seal Type: Contact Seals
• Enclosure: Double Sealed
• Material: Steel
• I.D.: 1.750 in
• Length Through Bore: 1.6875 in
• Dynamic Load Rating: 13200 lbf
• Weight: 3.03 LB
