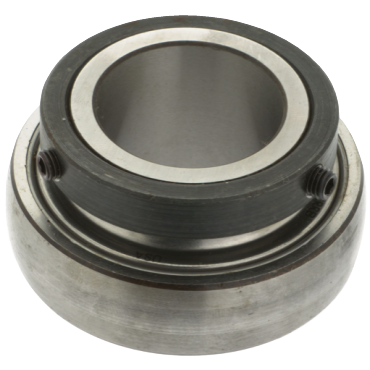

Fafnir GC1012KRRB GC-KRRB Industrial Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir GC1012KRRB is an industrial wide inner ring ball bearing designed for robust applications. This bearing features a relubricatable design along with spherical outer diameter and shroud seals which maintain tight contact and protect against contaminants.

• 3/4 inch inner diameter and 47 mm outer diameter.
• Double sealed with contact seals to prevent moisture and dirt ingress.
• Includes a concentric clamp collar for secure installation.

Product Highlights

Features enhanced grease capacity and extra support due to its wide design.

Product Information

Standard Information

• Brand: Fafnir
• MPN: GC1012KRRB

Technical Specifications

• Dynamic Load Rating: 3200 lbf
• Static Load Rating [Max]: 1400 lbf
• Overall Width: 1 7/32 in
• Locking Device: Concentric Clamp Collar
• Bearing Type: Ball Bearing
• Enclosure: Double Sealed
• Bore Type: Round Bore
• Duty: Standard-Duty
• Outer Ring Width: 14 mm
• Seal Type: Contact Seals
• Outer Ring Size: 204
• Rolling Element: Ball Bearing
• Material: Steel
• Inch/Metric: Inch Bore
• Static Capacity: 1400 lbf
• O.D.: 47 mm
• I.D.: 0.750 in
• Length Through Bore: 1.21875 in
• Weight: 0.45 LB
• EAN or UPC: 87796054479
