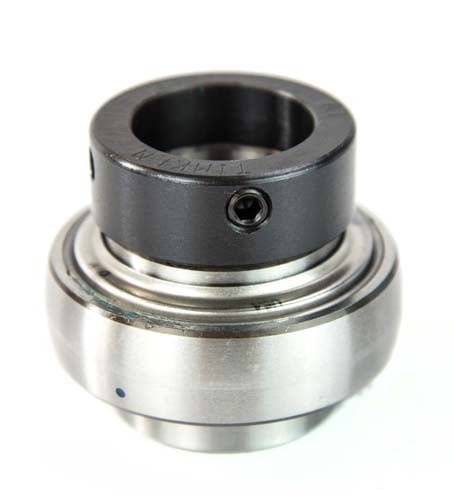

Fafnir G1112KPPB4 Ball Bearing Insert 1 3/4 ID x 85 mm OD Replacement MPN

Product Description

The Fafnir G1112KPPB4 ball bearing insert is designed for reliable performance in various applications. This insert features a one and three-fourth inch inner diameter and an outer diameter of eighty-five millimeters. The design includes a double-sealed contact, ensuring protection against contamination.

• Nonrelubricatable Tri-Ply seals for enhanced durability
• Self-locking collar for secure positioning
• Effective in environments with high contamination and moisture

Product Highlights

This bearing insert excels in standard duty applications and is an excellent choice for both new installations and replacements.

Product Information

Standard Information

• Brand: Fafnir
• MPN: G1112KPPB4

Technical Specifications

• Static Load Rating (Max): 4000 lbf
• Dynamic Load Rating: 8150 lbf
• Outer Ring Size: 209
• Material: Steel
• Lubrication: Relubricatable
• Overall Width: 1 11/16 in
• I.D.: 1.750 in
• O.D.: 85 mm
• Seal Type: Contact Seals
• Bore Type: Round Bore
• Weight: 1.908 LB
