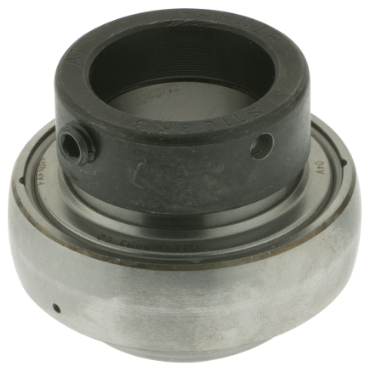

Fafnir G1102KRRB G-KRRB Industrial Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir G1102KRRB is an industrial series wide inner ring ball bearing. It features a one and one-eighth inch inside diameter and sixty-two millimeters outside diameter. The outer ring width is eighteen millimeters, making it suitable for various applications.

• Relubricatable for extended use
• Double sealed with contact seals
• Includes an eccentric locking collar

Product Highlights

This ball bearing is designed for reliable operation and ease of maintenance.

Product Information

Standard Information

• Brand: Fafnir
• MPN: G1102KRRB

Technical Specifications

• Outer Diameter: 62 mm
• Dynamic Load Rating: 4800 lbf
• Outer Ring Size: 206
• Enclosure: Double Sealed
• Static Load Rating [Max]: 2280 lbf
• Inside Diameter: 1.125 in
• Bearing Type: Ball Bearing
• Locking Device: Eccentric Locking Collar
• Duty: Standard-Duty
• Outer Ring Width: 18 mm
• Material: Steel
• Overall Width: 1.4375 in
• Static Capacity: 2280 lbf
• Length Through Bore: 1.4375 in
• Seal Type: Contact Seals
• Bearing Design: Non-Expansion
• Lubrication: Relubricatable
• Inch/Metric: Inch Bore
• Bore Type: Round Bore
• Rolling Element: Ball Bearing
• Weight: 1.962 lb
• EAN or UPC: 87796054875
