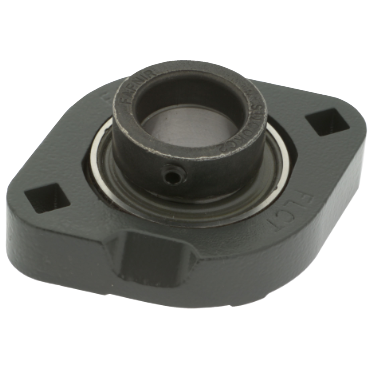

Fafnir FLCT11/4S | FLCT Standard Series 2-Bolt Flange Unit

Product Description

The Fafnir FLCT11/4S is a two-bolt flange unit designed for effective power transmission. This unit is compact and provides reliable shaft support with minimal space usage. It features positive contact seals and is built with high-quality materials for durability.

• RA-RRB extended inner ring ball bearings
• Non-relubricatable design for low maintenance
• Self-locking collar for secure assembly

Product Highlights

This flange unit is suitable for various applications including agriculture, fans, blowers, food processing, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• Part #: 101019927

Technical Specifications

• Bearing Insert: RA103RRB2
• Bearing Type: Ball Bearing
• Housing Length: 4 7/16 in
• Flange Thickness: 0.4063 in
• Housing Width: 13/16 in
• Overall Width: 1.5156 in
• Dynamic Load Rating: 4800 lbf
• Bolt Hole Size: 0.4063 in
• Housing Height: 3 5/16 in
• Shaft Diameter: 1.25 in
• Bolt Hole Spacing: 3 15/16 in
• End Type: Open End
• Inch/Metric: Inch
• Bearing Design: Non-Expansion
• Bolt Circle Diameter: 3 15/16 in
• Locking Device: Eccentric Locking Collar
• Mounted Unit Duty: Normal-Duty
• Lubrication: Non-Relubricatable
• Seal Type: Contact Seals
• Housing Construction: 1 Piece
• Flange Type: 2-Bolt Flange
• Housing Material: Cast Iron
• Weight: 1.562 lb
• EAN or UPC: 87796058354
