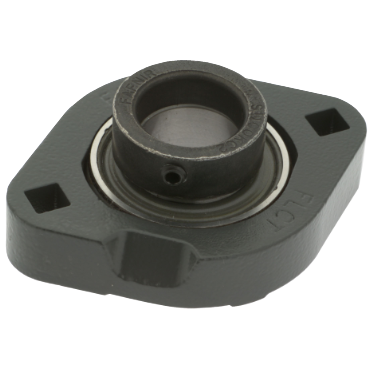

Fafnir FLCT1 FLCT Standard Series 2-Bolt Flange Unit

Product Description

The Fafnir FLCT1 is a standard series two-bolt flange unit designed for reliable power transmission in various applications. This unit features a compact design that supports shafts effectively while ensuring ease of installation. The flange unit includes robust RA-RRB extended inner ring ball bearings, which are protected by contact seals to prevent contamination.

• Features an eccentric locking collar for secure shaft retention.
• Constructed from durable cast iron for long-lasting performance.
• Designed for applications in food processing, conveyors, fans, and agricultural machinery.

Product Highlights

Ideal for tight spaces and heavy-duty use, this product minimizes installation hassle and maximizes reliability.

Product Information

Standard Information

• Brand: Fafnir
• MPN: FLCT1

Technical Specifications

• Housing Number: T-23961
• Housing Length: 3 3/4 inches
• Housing Width: 11/16 inches
• Housing Height: 2.797 inches
• Shaft Diameter: 1 inch
• Dynamic Load Rating: 3450 lbf
• Bolt Size: 5/16 inches
• Flange Type: 2-Bolt Flange
