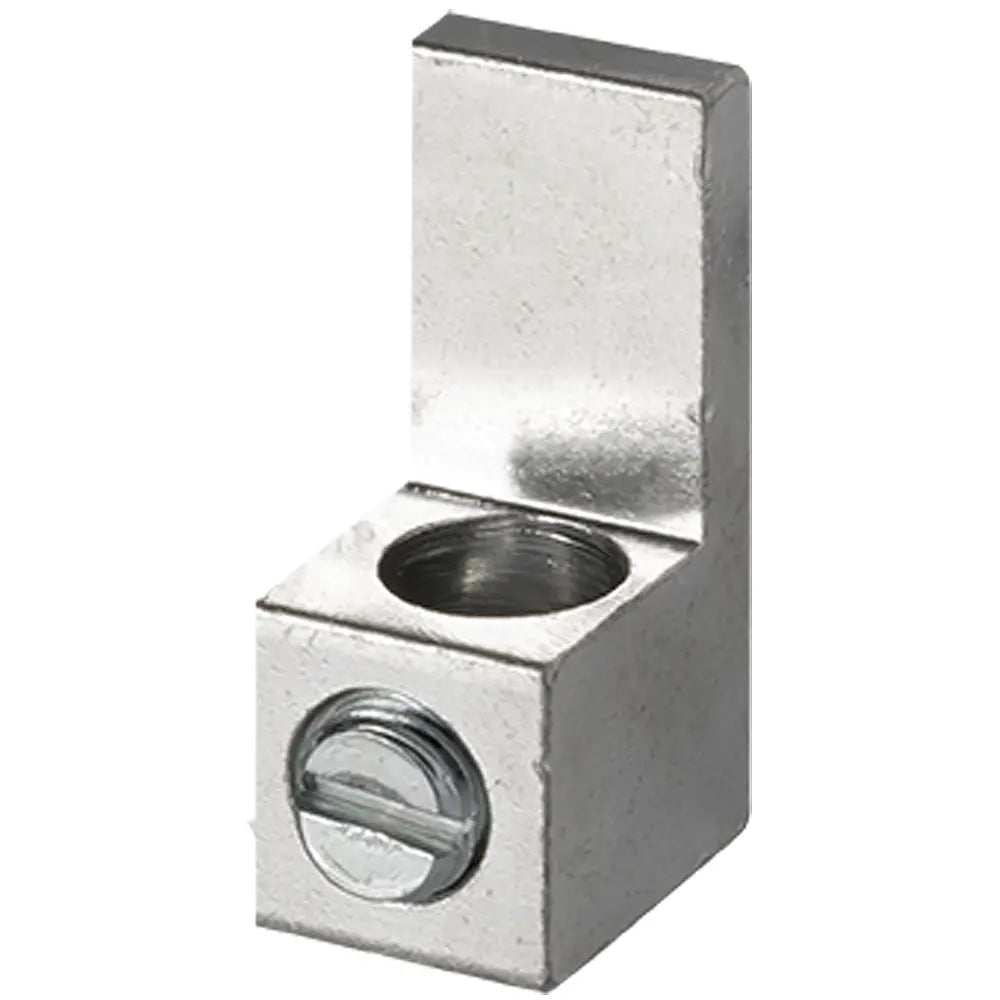

F4P F4P LMAS-0 Single Barrel Lug 14 - 1/0

Product Description

The F4P LMAS-0 is a single barrel lug engineered for wire termination. This lug is crafted from aluminum alloy and features a tin plating for efficient conductivity and lower contact resistance. It is rated for a voltage of six hundred volts, making it suitable for various electrical applications.

• Compatible with cable sizes from fourteen AWG to one/zero AWG.
• Mechanical connection type ensures a robust attachment.
• Designed for dry locations and meets cULus and UL standards.

Product Highlights

Utilized for securing electrical connections efficiently across various installations.

Product Information

Standard Information

• Brand: F4P
• Part Number: 0294-6135

Technical Specifications

• UPC: 00190010290994
• Width: 0.63 inches
• Height: 0.79 inches
• Length: 1.47 inches
• Weight: 0.04 pounds
• Material: Aluminum
• Insulated: Non-Insulated
• Voltage Rating: 600 VAC
• Number of Holes: 1
• Country of Origin: IN
• Environmental Conditions: Dry Location
