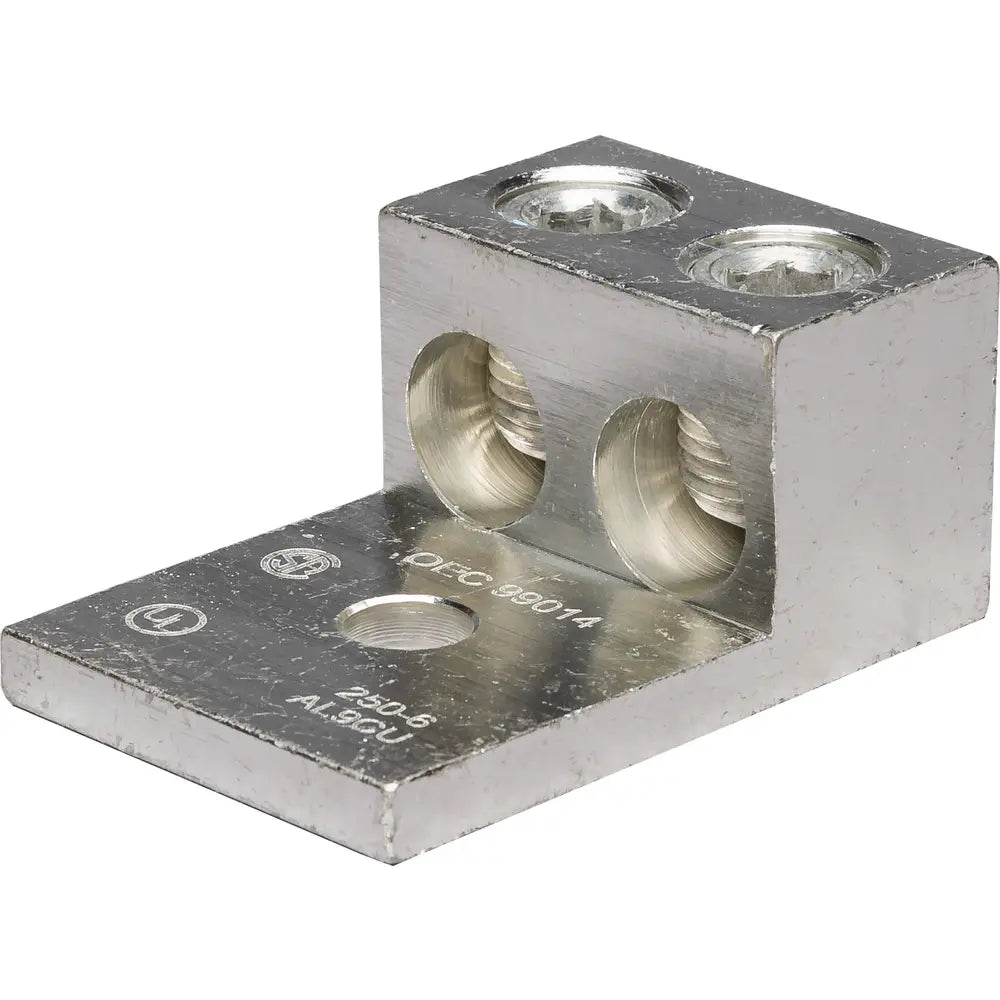

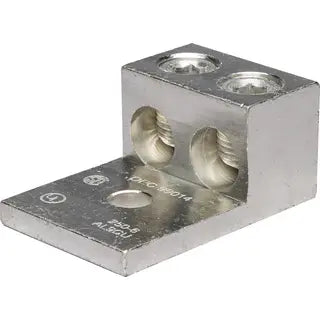

F4P F4P LMAD-250 Aluminum dual rated double barrel lugs

Product Description

The F4P LMAD-250 is an aluminum dual rated double barrel lug designed for secure wire connections. It features a versatile set screw connector made from aluminum alloy which is tin plated to ensure low contact resistance. This component can handle a voltage rating of six hundred volts, making it suitable for various electrical applications.

• Dual rated design for both aluminum and copper conductors.
• Rated for six hundred volts, ideal for commercial and residential wiring projects.
• Versatile and reusable, helping to reduce waste and cost.

Product Highlights

These mechanical lugs provide effective electrical connections for wire sizes ranging from six AWG to two hundred fifty MCM, suitable for a variety of installation types.

Product Information

Standard Information

• Brand: F4P
• Manufacturer: F4P

Technical Specifications

• Material: Aluminum
• Voltage Rating: 600 VAC
• Cable Size: 6 AWG - 250 MCM
• Height: 1.02 inches
• Length: 2.56 inches
• Width: 1.63 inches
• Weight: 0.221 pounds
• Connection: Mechanical
• Number of Holes: 1
• Insulated: Non-Insulated
• Country of Origin: IN
• Environmental Conditions: Dry Location
