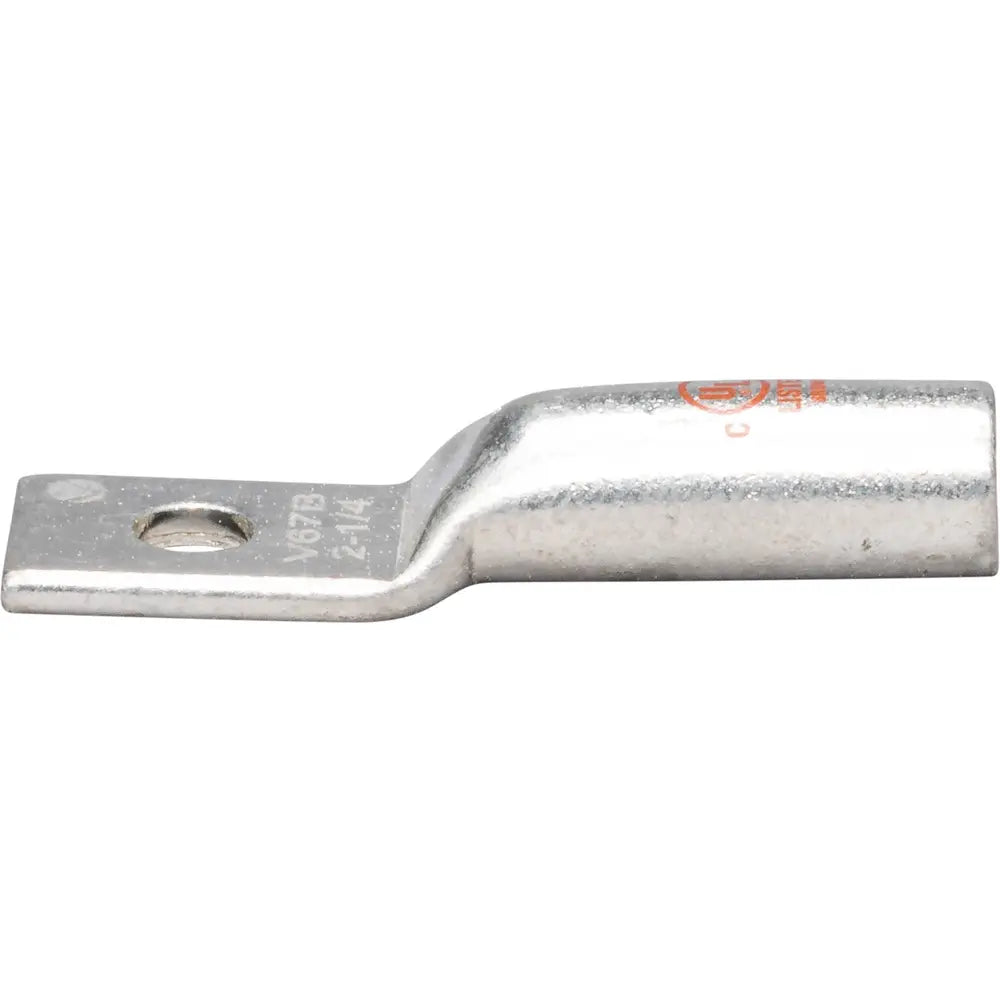

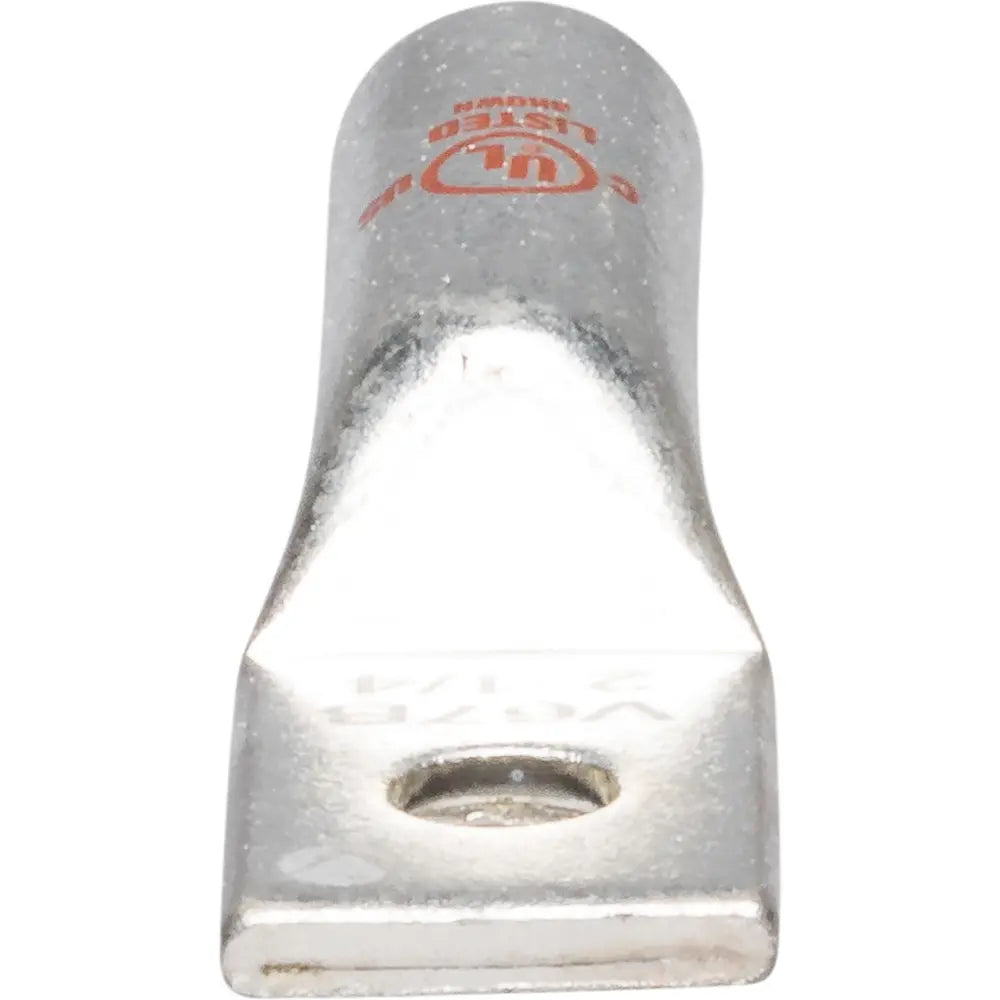

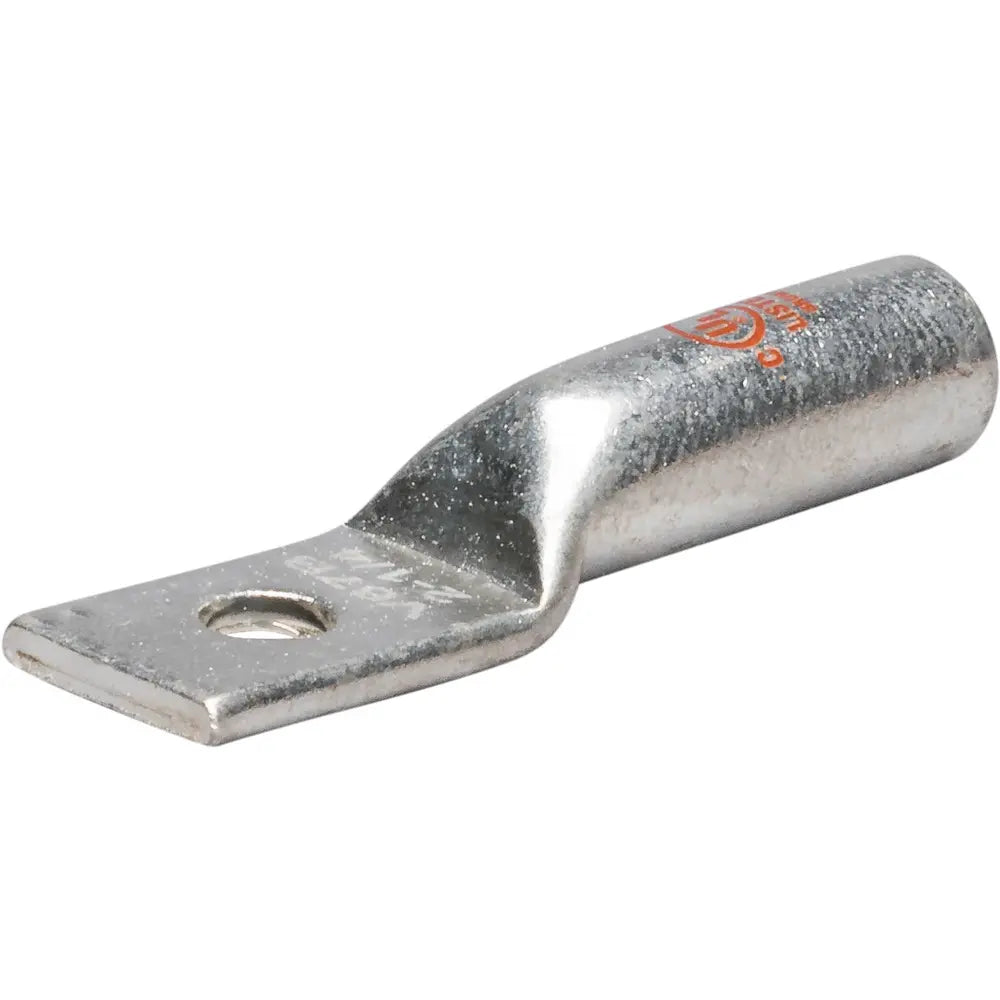

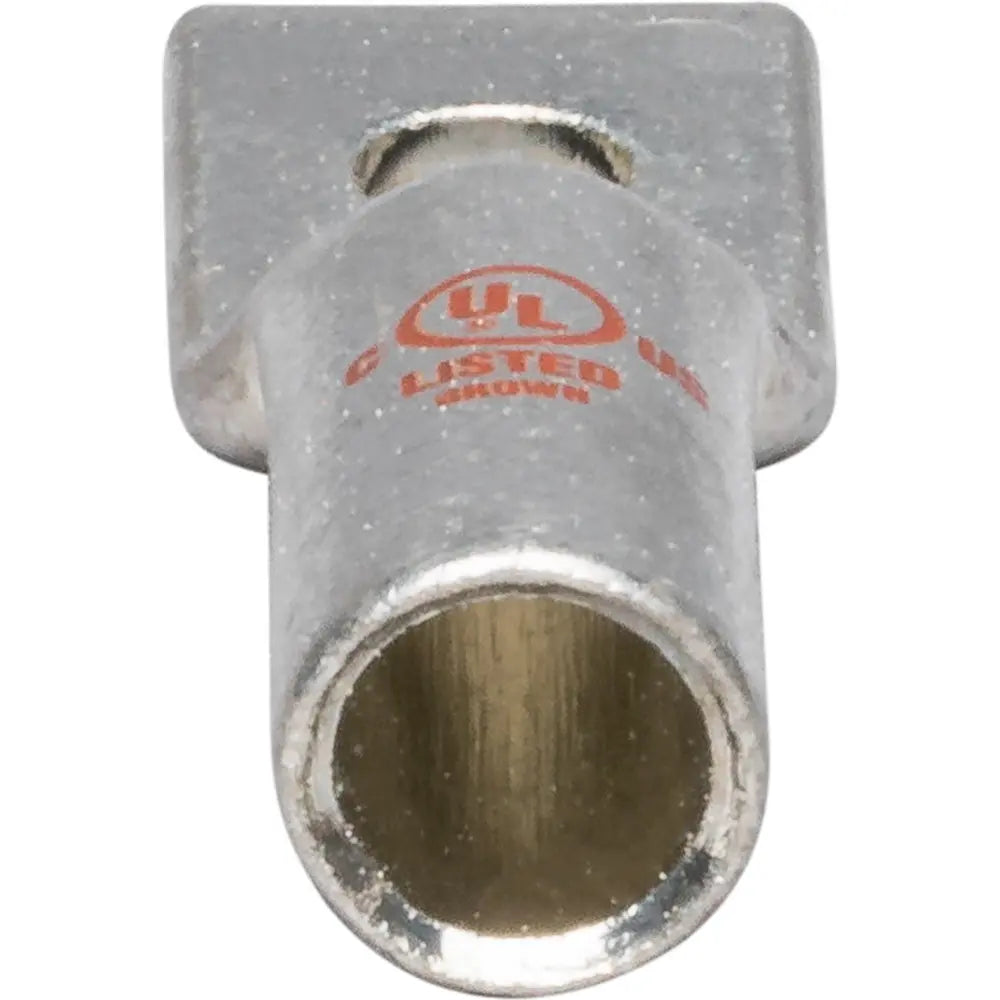

F4P F4P CL214-LB Single-Hole Long-Barrel - Copper Compression Connectors

Product Description

The F4P CL214-LB Single-Hole Long-Barrel Copper Compression Connectors are designed for reliable electrical connections. These connectors are made from high conductivity copper to ensure optimal performance. They come in various wire configurations and are suitable for different stud sizes.

• Produced from high conductivity copper tubing
• Tin-plated for corrosion resistance and low contact resistance
• UL listed for safety and reliability

Product Highlights

This connector is ideal for high-quality and dependable electrical connections. It is color-coded for easy identification and supports various wire sizes.

Product Information

Standard Information

• Brand: F4P
• MPN: F4P CL214-LB

Technical Specifications

• UPC: 190010083909
• Type: Compression Lugs
• Material: Copper
• Length: 2.07 inches
• Width: 0.602 inches
• Weight: 0.002 pounds
• Voltage Rating: 35,000 VAC
• Stud Size: 1/4 inches
• Cable Size: 2 AWG
• Environmental Conditions: Dry Location
• Connection: Crimp
• Number Of Holes: 1
• Color Code: Brown
• Mounting: Bolt-On
• Country of Origin: IN
