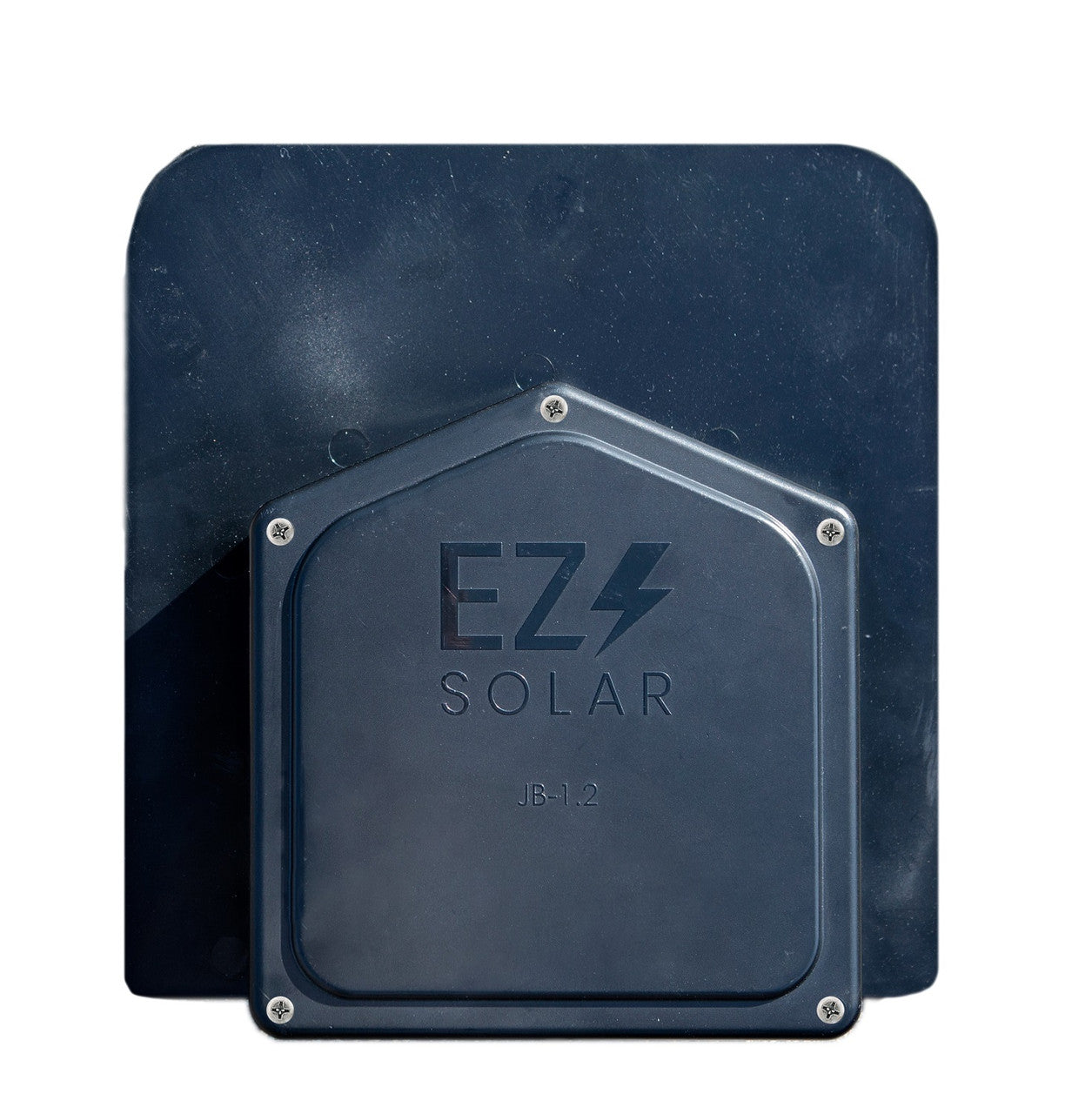

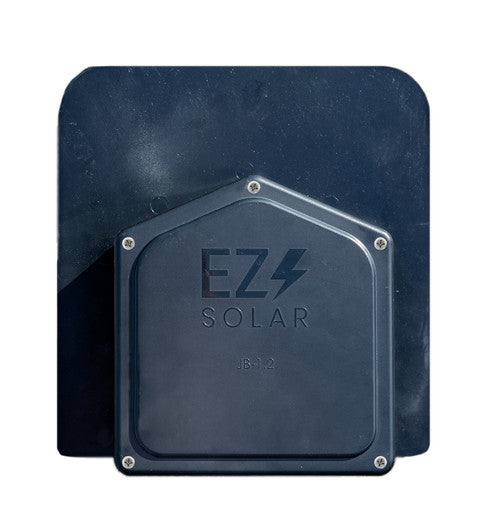

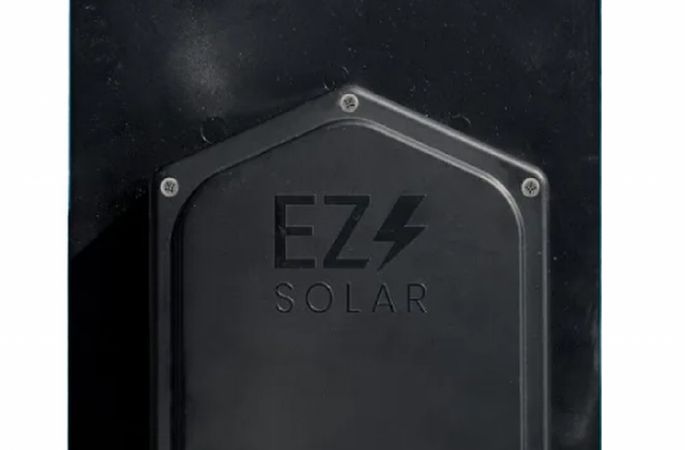

EZ Solar JB-1.2 Rooftop PV Junction Box

Product Description

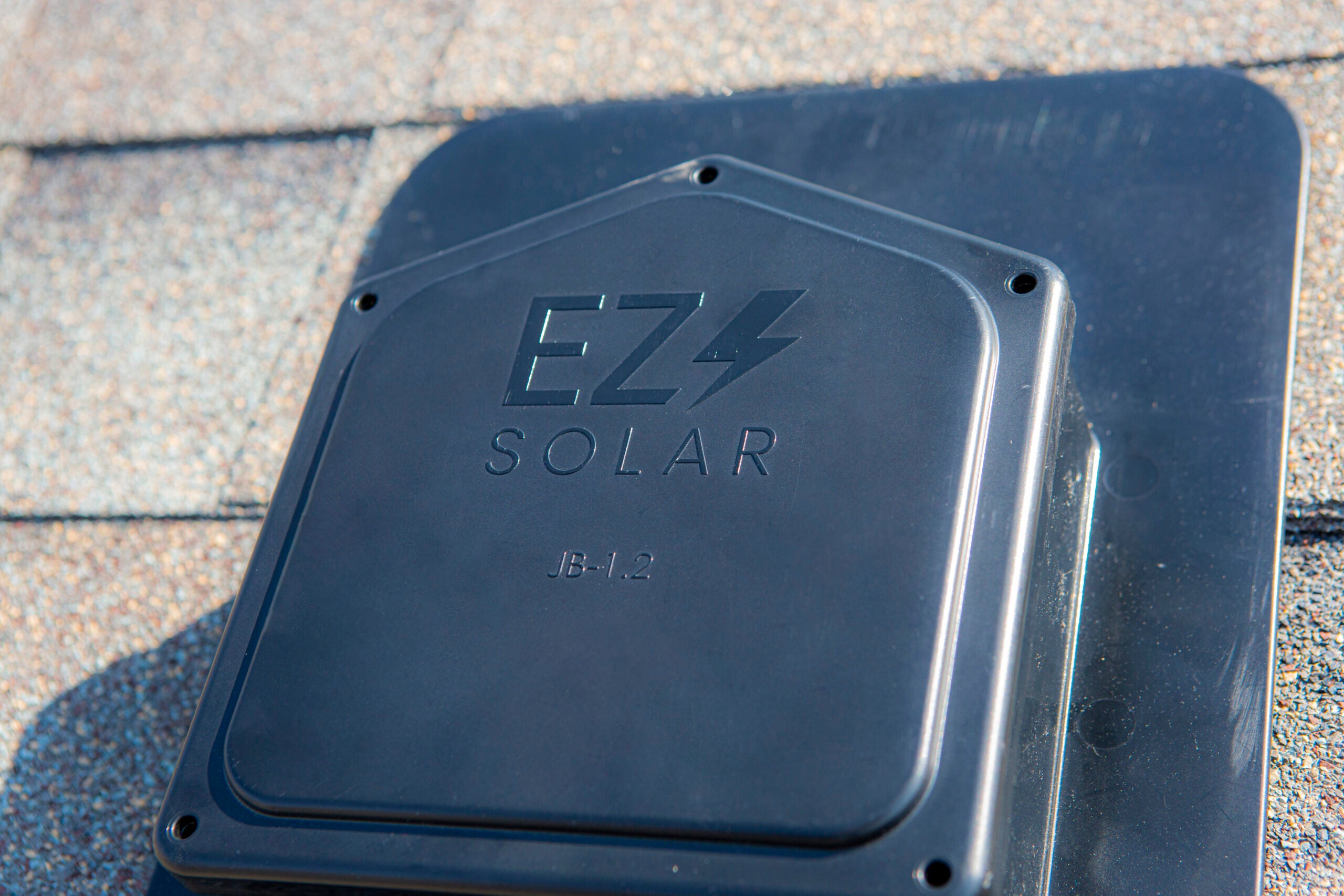

The EZ Solar JB-1.2 Rooftop PV Junction Box is designed for easy installation of solar panels on different types of roofs, including composition shingle, tile, and metal. Made from polycarbonate, this box offers enhanced durability. It is UL1741 compliant and features a unique design that includes three layers of water protection and two weep holes for ventilation.

• Compatible with wire sizes from 14 AWG to 6 AWG.
• Supports a maximum voltage of 1,000 Volts and a maximum current of 80 Amps.
• Designed for roof slopes ranging from 2.5 to 12:12.

Product Highlights

This junction box simplifies installations with minimal cutting required for shingles. The waterproof enclosure ensures that rain and snow do not affect the system’s performance.

Product Information

Standard Information

• Manufacturer Part Number: EZS-JB-1.2
• Manufacturer Warranty: 25 Years

Technical Specifications

• Maximum Voltage: 1,000 Volts
• Maximum Current: 80 Amps
• Allowable Wire: 14 AWG - 6 AWG
• Enclosure Rating: Type 3R
• Roof Slope Range: 2.5 - 12:12
• Ambient Operating Conditions: -35°C to 75°C
• Shipping Weight: 1.45 lb
• Shipping Dimensions: 11 x 10.5 x 2.86 in
