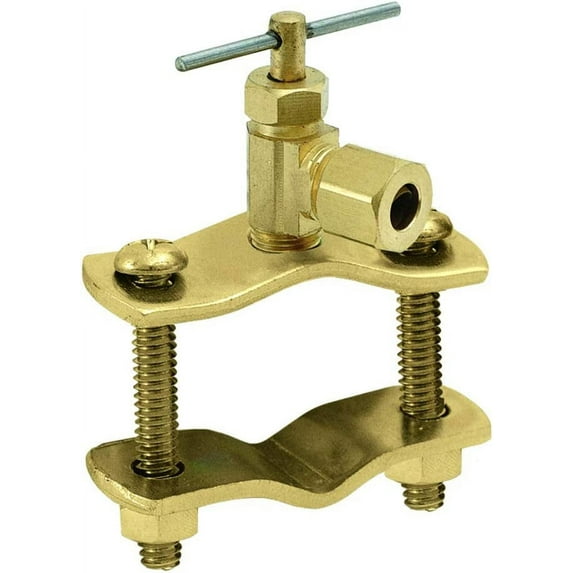

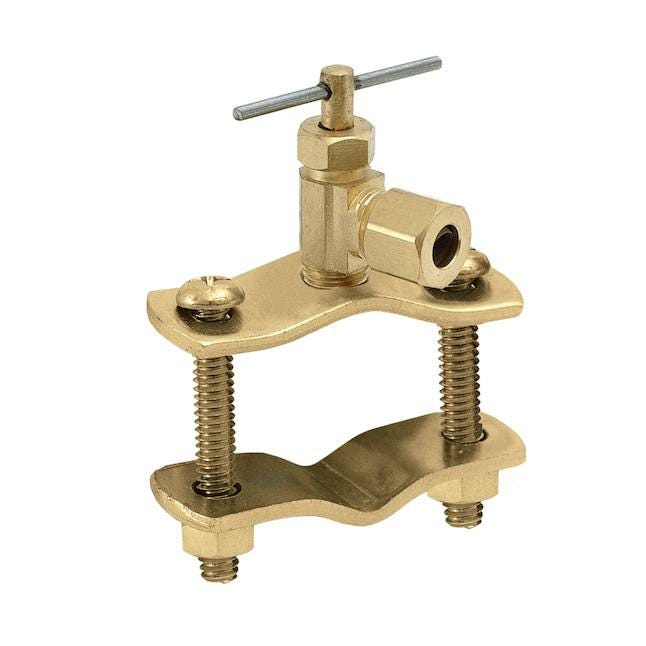

Ez-Flo Eastman 65801LF self-piercing saddle valve 1/4 inches brass for copper tubing

Product Description

The EZ-FLO EASTMAN 65801LF is a self-piercing saddle valve designed for tapping into existing 3/8" to 1-1/4" copper water lines to supply 1/4" OD tubing. This valve is commonly used in applications such as humidifiers and ice makers. The valve offers a compact and practical solution when a dedicated shut-off is needed on a branch line.

• Self-Piercing Needle: Eliminates the need to cut or solder the supply line—pierces copper tubing on installation to establish a connection.
• Brass Body Construction: Durable, corrosion-resistant body ensures dependable service in potable water systems.
• 1/4" Compression Outlet: Connects to standard 1/4 inch OD copper tubing, suitable for appliance supply lines.
• Compact Profile: Designed for tight installation spaces without compromising functionality.

Product Highlights

This self-piercing saddle valve features a brass body, 1/4" compression outlet, and is designed for easy installation on copper tubing.

Product Information

Standard Information

• Brand: EZ-FLO EASTMAN
• Manufacturer Part Number: 65801LF

Technical Specifications

• Brand: EZ-Flo
• Manufacturer: EZ-Flo Eastman
• MPN: 65801LF
• Sub Type: Multi Turn Saddle valve
• Connection Size: 1/4 in
• Connection Type: Compression
• Material: Brass
• Nominal Size: 1/4 inch
• Outside Diameter: 1/4 inch
• End Style: Copper Tube
• Handle Material: Zinc-plated steel
• Inlet Connection: Saddle clamp for 3/8"–1-1/4" copper tubing
• Outlet Connection: 1/4" OD compression
• Valve Type: Self-piercing, needle-type
• Lead-Free: Yes, compliant with federal Safe Drinking Water Act
• Pack quantity: 1
