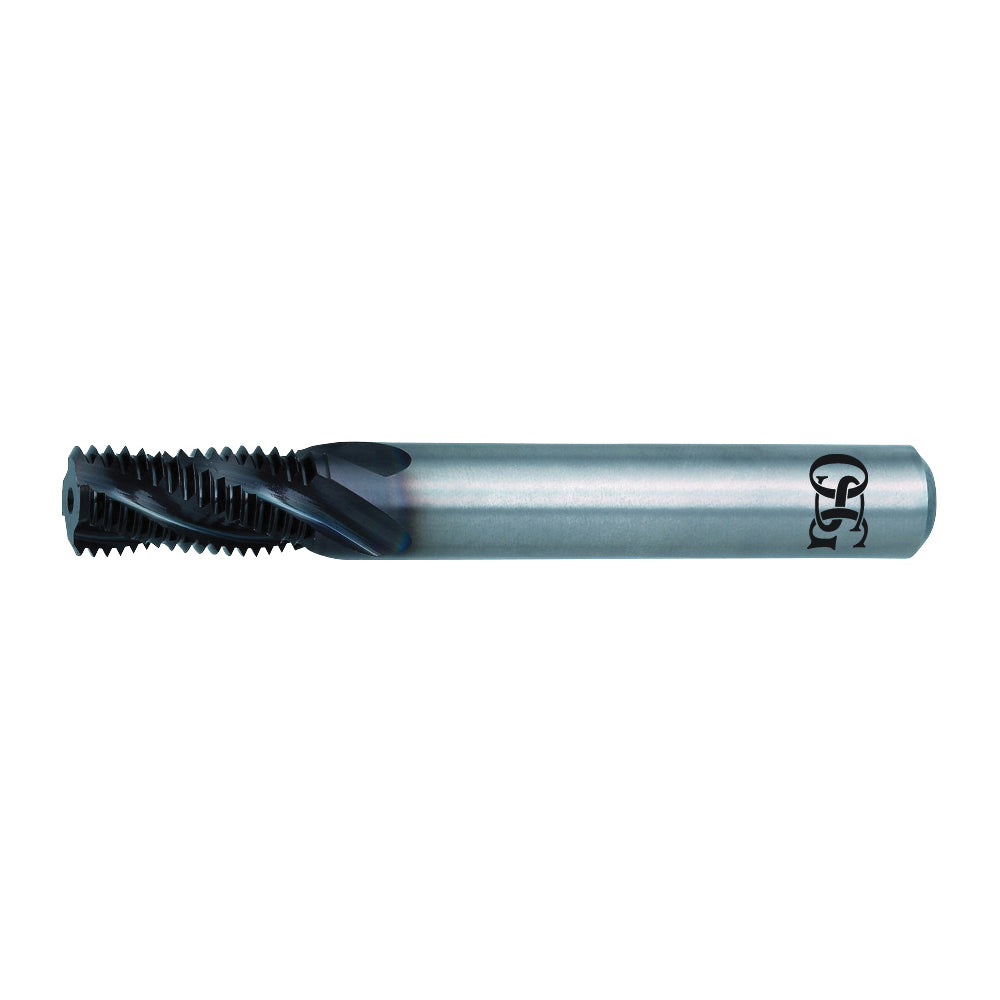

EXOCARB 4110000111 High Performance Type 1 Helical Flute Thread Mill, M6-1, 60 mm OAL

Product Description

The EXOCARB 4110000111 high performance helical flute thread mill is designed for efficient machining of threads in challenging materials. This product from OSG features a premium design suitable for steel and exotic materials.

• Made with OSG's premium sub-micrograin carbide for enhanced durability.
• Helical flutes facilitate smooth cutting and reduced forces.
• Coated with TiAlN for improved wear resistance and longer tool life.

Product Highlights

This thread mill performs well in creating internal inch, metric, and pipe threads without the need for coolant.

Product Information

Standard Information

• Brand: EXOCARB
• MPN: OSGTA-4110000111

Technical Specifications

• Cutting Diameter: 4.5 mm
• Finish: TiAlN Coated
• Length of Cut: 10 mm
• Material: Carbide
• Series: 41100
• Shank Length: 50 mm
• Shank Type: h6 Straight
• Type: High Performance Type 1
• Thread Size: M6-1
• Overall Length: 60 mm
• Number of Flutes: 3
• Shank Diameter: 6 mm
