EXO® OSGTA-1405004008 EXO® 1405004008 14050/VP-NRT High Performance Premium Thread Forming Tap #8-32

Product Description

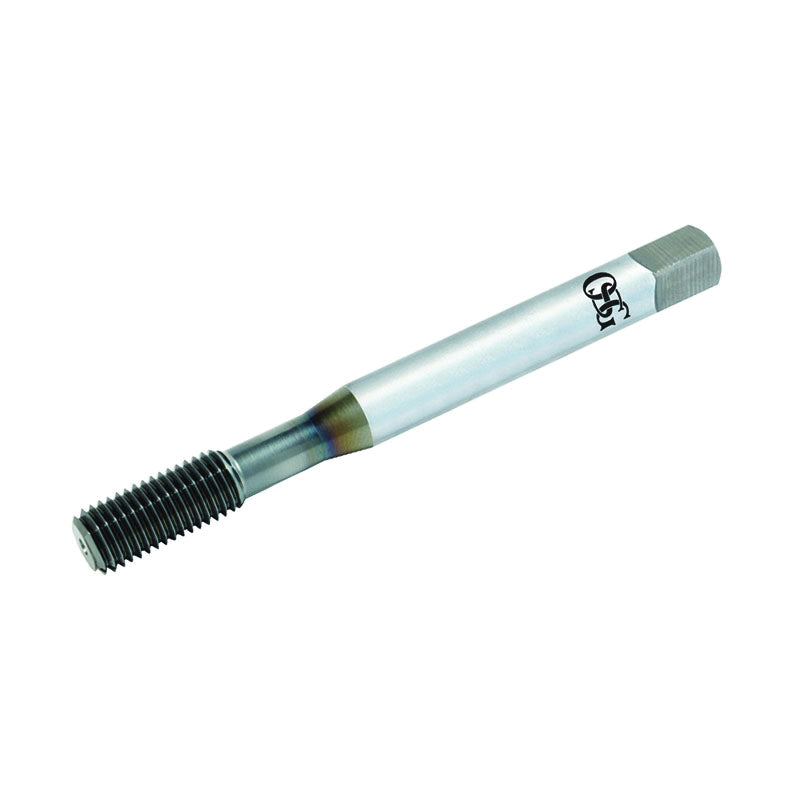

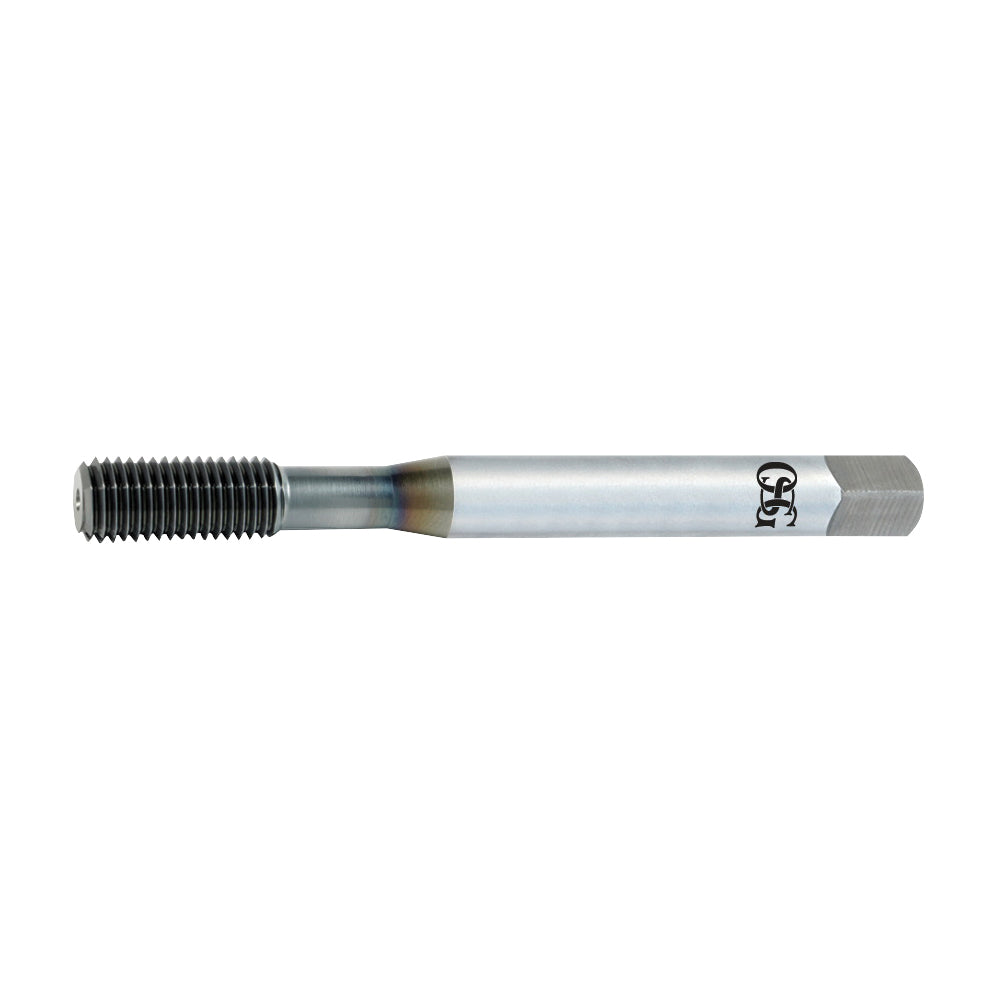

EXO® OSGTA-1405004008 is a high performance premium thread forming tap suitable for materials below thirty-two HRC. This product is designed for automobile engine applications, ensuring efficient and effective tapping in a range of environments. The tap features a #8-32 UNC thread and offers precision with a thread length of zero point four inches and an overall length of two point twelve inches.

• High performance premium quality
• Thread forming capability without coolant
• Ideal for automotive applications

Product Highlights

This tap is part of the OSG 14050/VP-NRT series and is designed to provide a reliable fit with a class of fit rating of 3B.

Product Information

Standard Information

• Brand: EXO®
• Manufacturer Part Number: OSGTA-1405004008

Technical Specifications

• Chamfer Type: 1.5P Short Bottoming
• Class of Fit: 3B
• Finish/Coating: V-Coated
• Material: VC-10
• Measurement System: Imperial
• Overall Length: 2.12 inches
• Series: 14050/VP-NRT
• Shank Diameter: 0.168 inches
• Square Size: 0.252 inches L x 0.131 inches W
• Tap Drill Size: 0.1481 to 0.1513 inches
• Thread Length: 0.4 inches
• Thread Standard: UNC
• Thread Size: #8-32
• Thread Limit: H3
