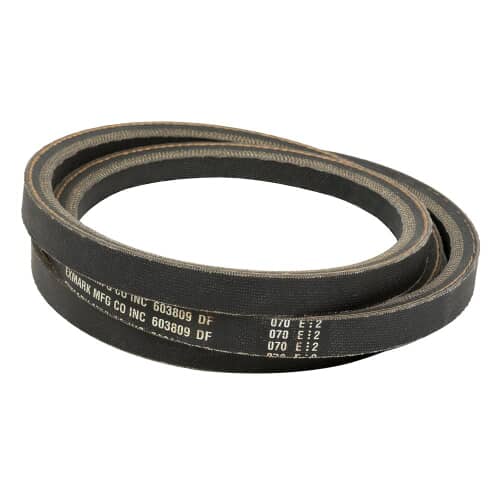

Exmark 1-603809 Hydro Transmission Drive Belt

Product Description

The EXMARK 1-603809 is a hydro transmission drive belt designed for use in Exmark walk-behind and zero-turn mowers equipped with hydrostatic drive systems. This belt transfers power from the engine to the hydrostatic transmission, enabling smooth and reliable ground drive operation. It is a direct OEM-style replacement intended for installation by lawn equipment technicians and experienced service professionals who maintain commercial-grade mowing equipment.

This drive belt is suited for Exmark mowers that use a hydrostatic transmission setup in the ground drive circuit. It is typically found in commercial walk-behind mowers and similar Exmark platforms where the hydro transmission is belt-driven from the engine. Installers should refer to the specific unit's service manual to confirm routing and tensioner configuration before installation.

Key Features

• OEM Exmark replacement belt for hydrostatic transmission drive systems
• Engineered to handle the load demands of commercial mowing equipment
• Direct fit replacement minimizes downtime during service
• Compatible with Exmark mowers using belt-driven hydro transmission configurations

Compatibility

Designed as an OEM-style replacement drive belt for Exmark mowers equipped with belt-driven hydrostatic transmission systems. Refer to your unit's parts manual using part number 1-603809 to confirm fitment for your specific model.

Installation Notes

Installation should be performed by a qualified small engine or outdoor power equipment technician. Before servicing, disconnect the spark plug wire and allow all moving components to come to a complete stop. Follow the mower manufacturer's service manual for correct belt routing and tensioner adjustment procedures. Do not operate the unit with a worn, cracked, or improperly routed belt, as this can result in loss of drive function or equipment damage.

Technical Specifications

• Part Type: Hydro Transmission Drive Belt
• Application: Hydrostatic Ground Drive System

Standard Information

• Brand: EXMARK
• Manufacturer Part Number: 1-603809
