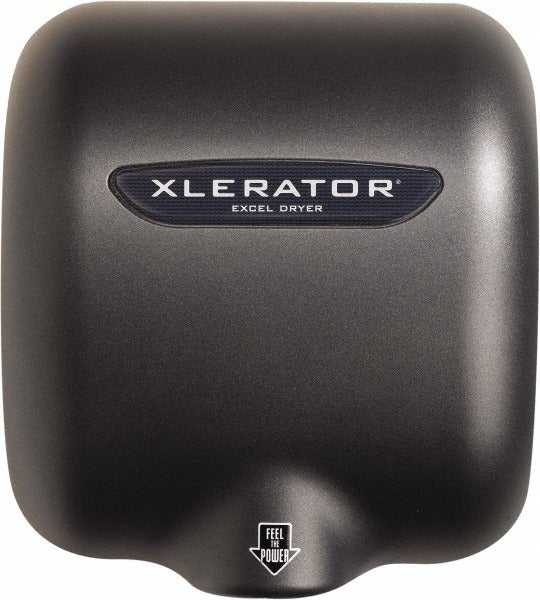

Excel Dryer 608161 Electric Hand Dryer 1500W Graphite

Product Description

The EXCEL DRYER 608161 is a 1500-watt electric hand dryer with a graphite zinc die-cast finish, designed for permanent wall-mount installation in commercial and institutional restrooms. Operating at 100/120 volts and drawing up to 12.5 amps, the unit delivers a maximum air temperature of 135 degrees F and achieves a rated dry time of approximately 8 seconds. Adjustable speed and sound controls allow the installer to tune airflow and noise output to the environment. Licensed electricians typically handle the hardwired installation to local NEC requirements.

The 608161 is suited for high-traffic commercial restrooms in offices, schools, healthcare facilities, and public venues. Its ADA-compliant design and included recess kit support accessible restroom layouts. The die-cast zinc housing provides durability in demanding environments. Compatible accessories ship separately and allow configuration for paper towel retrofit or antimicrobial wall protection depending on facility requirements.

Key Features

• 1500-watt motor with approximately 8-second rated dry time
• Adjustable speed and sound control for environment-specific tuning
• Graphite zinc die-cast housing for long-term durability
• ADA-compliant; includes recess kit (40502) for recessed wall installation
• Includes antimicrobial wall guards (89B, 89W, 89S) and XChanger paper towel dispenser retrofit kits (40575, 40550)
• UL and cULus listed

Compatibility

Designed as an OEM-style replacement or new-install hand dryer unit for standard commercial restroom electrical circuits at 100/120 volts. Compatible accessories include ADA-Compliant Recess Kit 40502, Antimicrobial Wall Guards 89B, 89W, and 89S, and XChanger Paper Towel Dispenser Retrofit Kits 40575 and 40550.

Installation Notes

Installation is performed by a licensed electrician following applicable NEC requirements for hardwired commercial restroom fixtures. Disconnect and lock out power at the circuit breaker before beginning any wiring work. Mount the unit at the ADA-required height when the recess kit is used, and verify the wall structure can support the 17-pound unit weight before fastening. Do not operate without verifying the supply voltage matches the unit rating of 100/120 volts.
