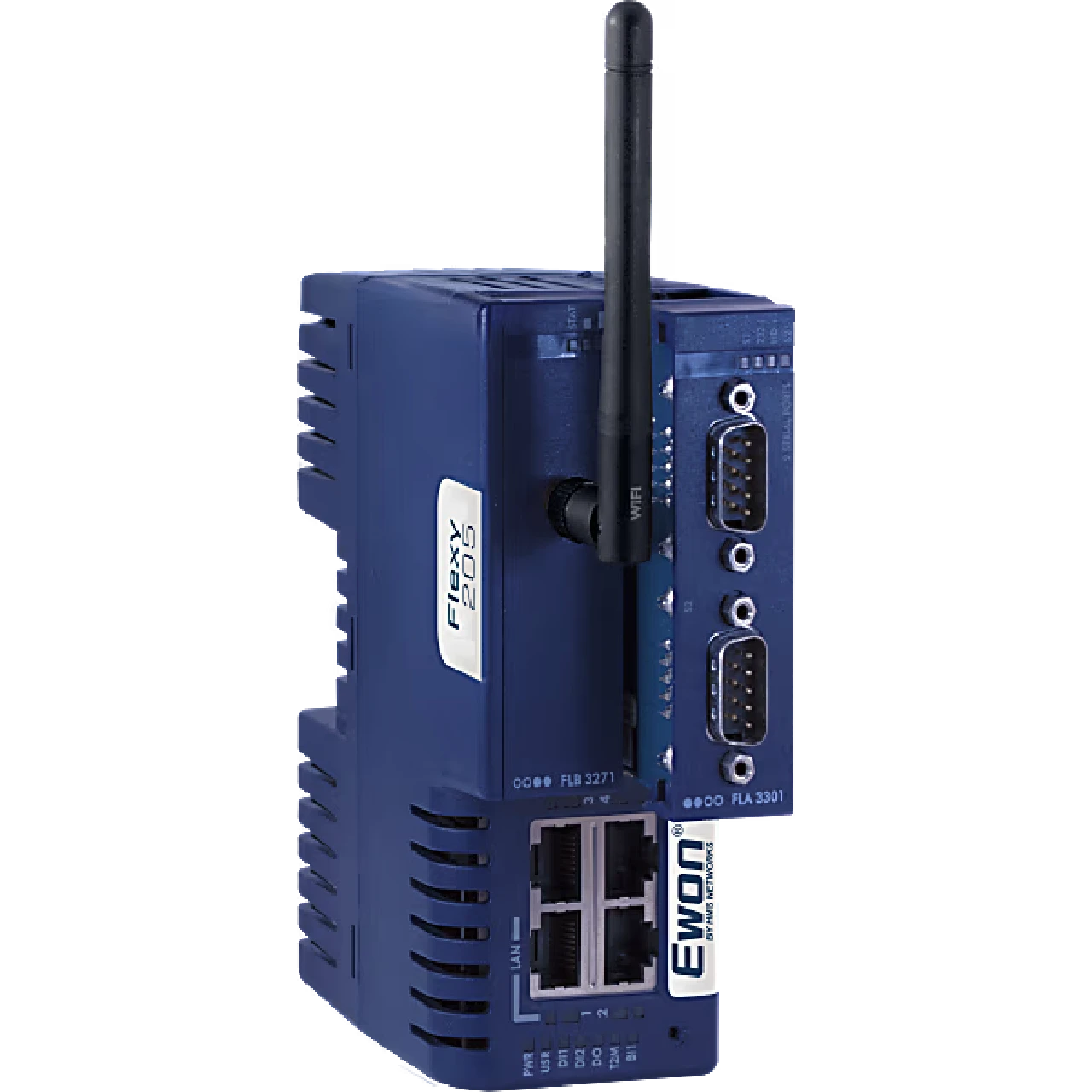

Ewon FLEXY205 IIoT Gateway and Remote Access

Product Description

The EWON FLEXY205 is a multipurpose IIoT data gateway that allows machine builders and users to monitor and collect vital KPIs for analysis and predictive maintenance. It supports a wide range of industrial protocols, including OPC UA, to gather data from PLCs, sensors, and other devices.

• Easily acquire and log data
• Enable machine remote connectivity
• Implement efficient data monitoring

Product Highlights

The EWON Flexy 205 enables efficient data monitoring and flexible data integration. It supports all major PLC protocols for data logging & alarms.

Product Information

Standard Information

• Brand: EWON
• Manufacturer Part Number: FLEXY205
• Country of Origin: Lithuania

Technical Specifications

• Item Number: FLEXY20500_00MA
• Brand: Ewon
• Net Width (mm): 55 mm
• Net Height (mm): 133 mm
• Net Depth (mm): 122 mm
• Net Weight (g): 122 g
• Mounting: DIN rail mount (bracket included), Wall mount
• Input Voltage (V): 12 - 24VDC +/-20%, LPS.
• Power Connector: 9-pole
• Operating Temperature °C Min: -25 °C
• Operating Temperature °C Max: +60 °C
• Storage Temperature °C Min: -30 °C
• Storage Temperature °C Max: +70 °C
• Relative Humidity: 11 to 95% relative humidity (non-condensing).
• Housing Materials: Plastic
• PLC Compatibility: Rockwell Automation/Allen Bradley, Siemens, Schneider Electric, Mitsubishi Electric, Vipa, Omron, Hitachi
• Configuration: Web-Based configuration: Embedded web interface with setup wizards for configuration and maintenance (no extra software needed). Authentication with login/password and user management capability. Possibility of uploading custom web GUI.
• CE: Yes
• UL: Yes
• KC: Yes
• RCM: Yes
• Other Certification: Giteki Japan, Russia FSS notification
• PTCRB: No
• FCC: Yes
• IC: Yes
• Environment: Temperature - Operating & Storage tested according to: IEC 60068-2-1 Cold test, IEC 60068-2-2 Dry heat test, IEC 60068-2-14 Change of temperature, IEC 60068-2-30 Cyclic damp heat test
• Vibration and Shock: Vibration & shocks tested according to: IEC 60068-2-27 Bumps, IEC 60068-2-64 Vibration (broad-band random), IEC 60068-2-6 Vibration (sinusoidal)
• Waste Certification (WEEE): Yes
• WEEE Category: IT and telecommunications equipment
• UKCA: Yes
• VPN Security: VPN sessions are end-to-end encrypted using SSL/TLS protocol. Communications between the remote user and the Ewon are fully encrypted using the SSL/TLS protocol, thereby ensuring data authenticity, integrity & confidentiality. Indeed, all users and Ewon units are authenticated using x509 SSL certificates and end-to-end traffic is encrypted using strong symmetric & asymmetric algorithms that are part of the SSL/TLS protocol cipher suite.
• Data Acquisition Protocols: OPC UA, Modbus RTU, Modbus-TCP, Unitelway, DF1, PPI, MPI, PROFIBUS, FINS Hostlink, FINS TCP, EtherNet/IP, ISO TCP, Mitsubishi FX, Mitsubishi MELSEC, Hitachi EH, ASCII, BACnet/IP
• Router Features: Routing capability between LAN and WAN Ethernet interface and Ethernet to serial gateway. IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server, NAT 1 :1.
• VPN: OpenVPN either in SSL UDP or TCP.
• Data Publishing Protocols: OPC UA, Modbus, MQTT, SNMP, HTTPS
• Data Logging: Define up to 2500 internal tags. Internal database for data logging (real-time logging and historical logging up to 1,000,000 timestamps). Historical data can be exported to DataMailbox or transferred by FTP or email.
• Export Control Classification Number (ECCN) (Applies only to the U.S): 5A992.c
• Dual Usage: No
• HS Code: 8517620000
• Connectors / Input / Output: 4 x RJ45 Ethernet port: 10/100 Mb. Configurable LAN/WAN ports, port 1 always LAN, 2x Digital input: 0 to 12/24VDC; 1.5kV isolation, 1x Digital output: open drain (MOSFET) 200mA; 1.5 kV isolation.
• Contains Battery: Yes
• SD Card Slot: SD
• Flexy 205 base module interfaces: 4 x RJ45 Ethernet 10/100MB Configurable LAN/WAN ports, port 1 always LAN
• Alarms: Alarms notification by email, SMS, FTP put and/or SNMP traps.
• SD card reader: YES, for easy commissioning (firmware upgrade, backup, Talk2M registration).
• Router: IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server
• VPN Tunneling: Open VPN either in SSL UDP or HTTPS; VPN Security:end-to-end encrypted using SSL/TLS
• User Flash Disk: up to 30MB available for user application
• Mechanicals: Din Rail or wall screw fixing system
• Dimensions: 133 x 122 x 55mm (H x D x W)
• Weight: 280g without extension card
• Power supply: 12 - 24VDC +/-20%, LPS
• Consumption: depending on the extension card installed
• Input/output: 2x digital input: 0 to 12/24VDC, 1.5kV isolation; 1x digital output: open drain (MOSFET) 200mA, 1.5kV isolation
