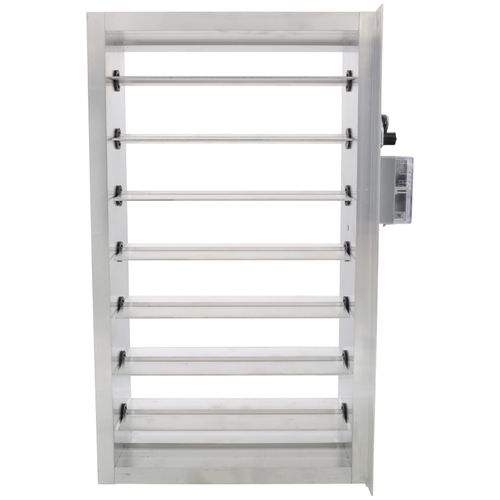

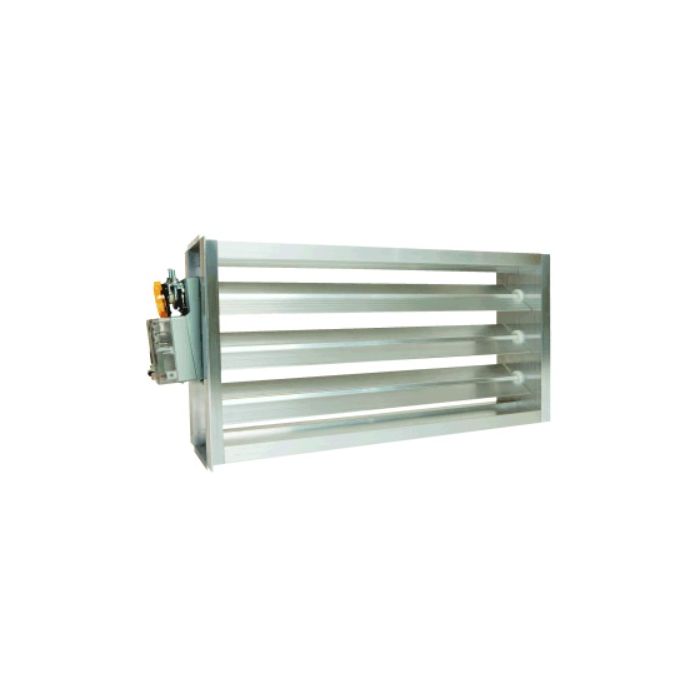

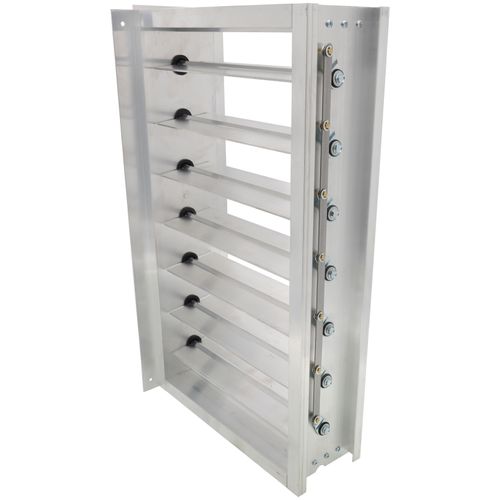

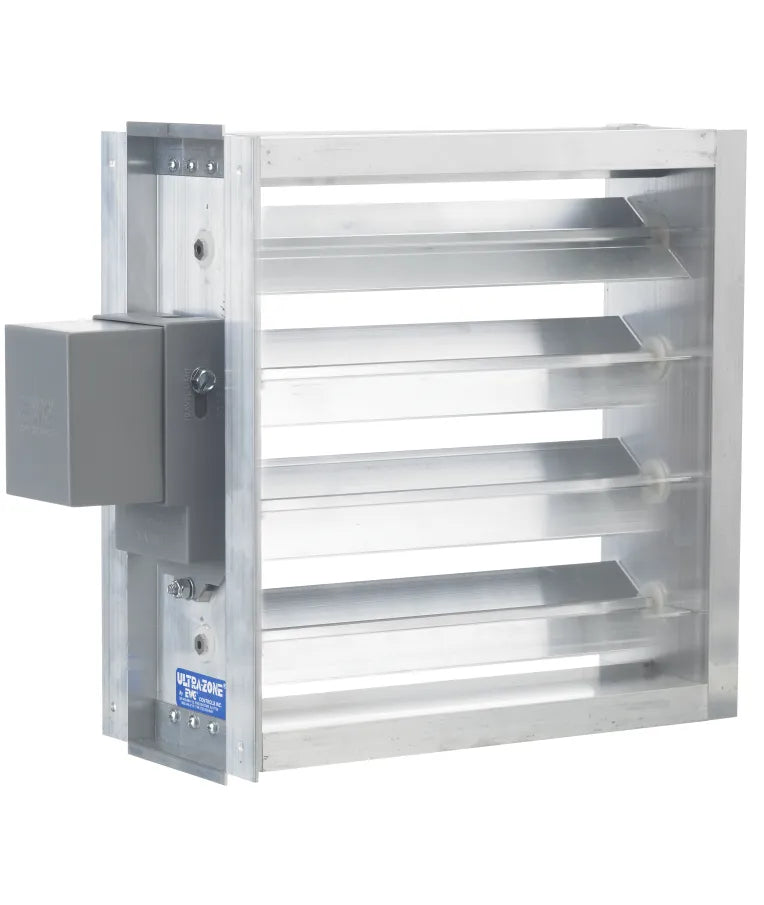

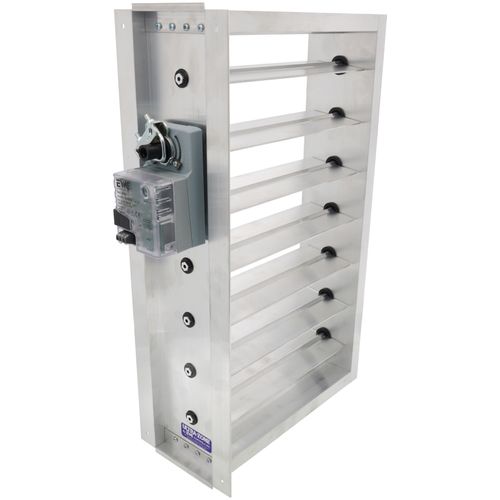

Ewc 12X20 ND Motorized Damper (12 inches x 20 inches)

Product Description

The EWC 12X20 ND Motorized Damper is constructed using heavy-duty extruded aluminum and nylon bearings for quiet operation. It features an overlapping parallel blade design and reliable operation up to 1.5"wc and 1500FPM duct velocities. The UL Listed Motor Actuator uses 24vac 3 wire power open/ power close or floating function.

• Constructed using Heavy Duty 0.80” extruded aluminum
• Nylon Bearings for quiet operation
• Reliable operation up to 1.5 WC and 1500FPM duct velocities

Product Highlights

This rectangular damper is ideal for air quality applications, featuring an LED light and a NEMA1 rated motor actuator housing.

Product Information

Standard Information

• Brand: EWC
• Manufacturer Part Number: 12X20 ND
• Country of Origin: United States

Technical Specifications

• Product Type: ND Motorized Damper
• Size: 12" x 20"
• Voltage: 24V
• Features: LED Light
• Shape: Rectangular
• Wires to Motor: 3
• Motor Mount: Bottom
• Application: Air Quality
• MPN: 12X20 ND
• Manufacturer: EWC Controls
• Height (Inches): 12"
• Length (Inches): 20"
• Item: Rectangular Damper, 12"X20"
• Item Number: 12X20 ND-LF24 NO
• Brand: EWC Controls
