EWC 12X16ND-15S Motorized Damper 12 x 16

Product Description

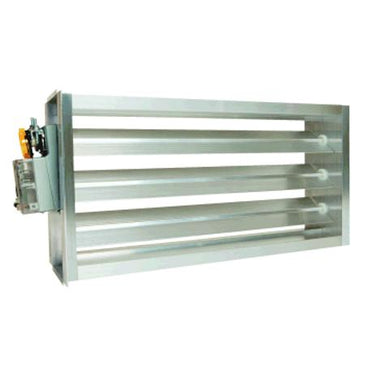

The EWC 12X16ND-15S is a motorized damper designed for zoning systems. It measures twelve inches by sixteen inches and features an easy three-wire, power-open and power-close motor. The damper has a heavy-duty extruded aluminum frame with nylon bearings to ensure durability and quiet operation.

• Constructed from heavy-duty 0.80 inches extruded aluminum
• Features an overlapping parallel blade design for minimal leakage
• Operates reliably with a static pressure of up to 1.5 inches w.c. and air velocity of 1500 feet per minute

Product Highlights

This motorized damper is ideal for HVAC zoning applications.

Product Information

Standard Information

• Brand: EWC Controls
• Motorized: Yes

Technical Specifications

• Item Number: 12X16 ND-15S
• Shape: Rectangular
• Size: 12 x 16 inches
• Spring Return: Non-Spring Return
• Dimensions: 16 inches H x 12 inches W x 4 inches D
• Electrical Connection: Quick Connecting Terminal Block, 3-Wire
• Finish: Mill Finish (Extruded Aluminum)
• Frequency Rating: 50 Hz, 60 Hz
• Material Standard: UL Listed (Motor Actuator), NEMA 1 (Motor Housing)
• Material: Extruded Aluminum (Frame/Blades), Nylon (Bearings)
• Model: 12X16 ND
• Motor Specifications: 24 VAC, 3-Wire Power Open/Power Close, 18 in-lb Torque, NEMA 1 Housing, UL Listed
• Mounting Type: Slip-In, Side/Bottom Mount (Motor)
• Opening Size: 12 inches x 16 inches
• Phase: 1
• Pressure Rating: 1.5 inches w.c.
• Rated Velocity: 1,500 fpm
• Series: ND Series
• Temperature Rating: 185 °F (Maximum, Operating)
• Timing Range: 40 seconds
• Torque Rating: 18 in-lb
• Voltage Rating: 24 VAC
• Blade Type: Overlapping Parallel
