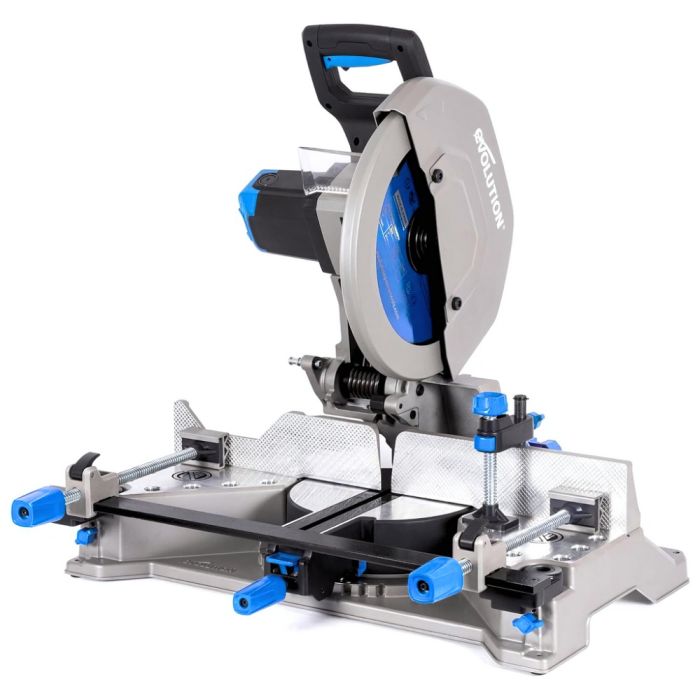

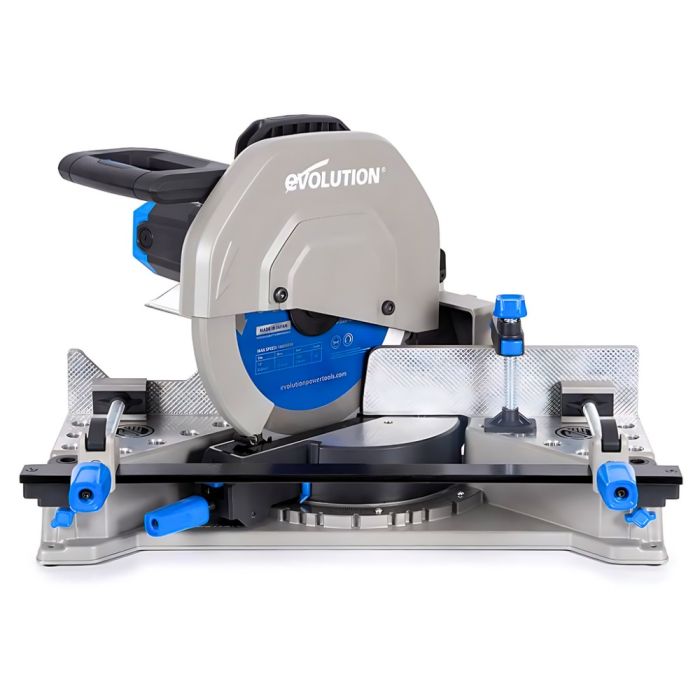

Evolution 102-0004A S14MCS Metal Cutting Mitering Chop Saw with 14 in. EVOMAX14ST Blade

Product Description

The Evolution 102-0004A S14MCS Metal Cutting Mitering Chop Saw is designed for metal cutting. It features a 14 in. EVOMAX14ST blade and a precision adjustable miter table. The innovative dual sliding front clamps with quick-release clasps offer versatile clamping. It delivers precise and quick angle adjustment for easy set-up and a powerful clamping mechanism.

• Mitering Base & Blade
• Dual-sliding Cast Iron Clamps
• Sliding Head with Locking Pin

Product Highlights

This chop saw is designed to tackle heavy cuts in oversized metal pieces and delivers precise and quick angle adjustment for easy set-up.

Product Information

Standard Information

• Brand: EVOLUTION
• Manufacturer Part Number: 102-0004A
• Country of Origin: Japan

Technical Specifications

• Manufacturer: Evolution Power Tools
• UPC: 849713097286
• Diameter: 14"
• Electric Brake: No
• Variable speed: No
• Type: benchtop
• Motor: 15 amp, 110 volt
• Corded or Cordless: Corded
• No Load Speed: 1,450 RPM
• Maximum Miter (Left and Right): +/- 46Deg
• Cable Length: 10'
• No. of Teeth: 66
• Bore: 1"
• Kerf: 0.094"
• Mild Steel Plate (Maximum Thickness): 1/2"
• Stainless Steel Plate (Maximum Thickness): 13/64"
• Square Tube at 90Deg (Mild Steel): 4-3/4" x 4-3/4"
• Square Tube at 45Deg ML: 4" x 4"
• Square Tube at 45Deg MR: 1-3/4" x 1-3/4"
• Rectangle Tube at 90Deg: 6-1/2" x 4"
• Rectangle Tube at 45Deg: 4-1/2" x 1-3/4"
• Round Tube at 90Deg (Diameter): 4-3/4"
• Round Tube at 45Deg (Mild Steel) (Diameter): 4"
• Minimum Cut Off Piece Length: 5/16"
• Brand Name: Evolution Power Tools
• Amperage (A): 15
• California Proposition 65 Warning Required: Yes
• Country of Origin: Japan
• MFG Part # (OEM): 102-0004A
• Voltage: 120
• Arbor Shape: Round
• Arbor Size: 1 in
• Bevel Angle Range: 45 °
• Blade Dia.: 14 in
• Cord Length: 10 ft
• Current: 15 A
• Cutting Blade Type: Carbide Tipped
• Cutting Diameter - Maximum: 14 in
• Frequency: 60 Hz
• Guard Type: Metal Blade Guard
• Includes: (2) Quick Release Front Cl As; (3) V Blocks; 5 mm/8 mm Double Ended Hex Key; 80 Tooth Mild Steel TCT Blade; Base Table Assembly; Cutting Head Assembly; Quick Release Top Cl A; Rail Bracket and Fixings; Rear Stabilizing Leg
• Max. Blade Speed: 1,100 RPM
• Metal Saw Type: Chop Saw
• Miter Angle - Maximum: 46 °
• Miter Angle - Minimum: 46 °
• Miter Angle Range: 46 ° to 46 °
• Power Source: Corded
• Rectangle Cut Capacity @ 0 Deg.: 6-1/2 in x 4 in
• Rectangle Cut Capacity @ 45 Deg.: 3-15/16 in x 4-5/16 in
• Round Cut Capacity @ 0 Deg.: 4-3/4 in
• Round Cut Capacity @ 45 Deg.: 4-5/16 in
• Square Cut Capacity @ 45 Deg.: 1-11/16 in x 1-11/16 in; 3-15/16 in x 3-15/16 in
• Blade Size (inches): 14
• Blade Width (inches): .094
• Number of Speeds: 1
• Speed(s): 1100 rpm
• Mitering Range: 46 degrees left and right
• Round Tube Capacity 90 Deg (inches): 4-3/4
• Round Tube Capacity 45 Deg (inches): 4-5/16
• Square Tube Capacity 90 Deg (inches): 4-3/4
• Square Tube Capacity 45 Deg (inches): 3-15/16
• Rectangle Tube Capacity 90 Deg (inches): 6-1/2 x 3-15/16
• Rectangle Tube Capacity 45 Deg (inches): 3-15/16 x 4-5/16
• Input Voltage: 120V AC
• Input Frequency: 60 Hz
• Input Current: 15 A
• Blade Diameter: 14 in
• Maximum Blade Speed: 1,100 RPM
